Toyota Camry (XV70): Right Front Wheel Speed Sensor Circuit Voltage Out of Range (C05061C)

DESCRIPTION

Refer to DTC C050612

Click here

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

C05061C

Right Front Wheel Speed Sensor Circuit Voltage Out of Range

  • When the vehicle is being driven in a straight line at a speed of 20 km/h (12 mph) or more and VSC/TRAC has permission to control vehicle braking, one of the following conditions is met when the difference between the highest wheel speed and the lowest wheel speed is 6% or more*1 for between 9 and 72 seconds or more (period changes depending on vehicle conditions):
    • When the difference between the highest wheel speed and the second highest wheel speed is 5 km/h (3 mph) or more, the wheel speed is high compared to other speed sensors.
    • The value of the wheel speed is continuously the slowest.
    • When the wheel speed is less than 5 km/h (3 mph).
  • When the vehicle speed is less than 100 km/h (62 mph), one of the following conditions is met when the difference between the highest wheel speed and the lowest wheel speed is 6 km/h (4 mph) or more*2 for between 9 and 72 seconds or more (period changes depending on vehicle conditions):
    • When the difference between the highest wheel speed and the second highest wheel speed is 5 km/h (3 mph) or more, the wheel speed is high compared to other speed sensors.
    • The value of the wheel speed is continuously the slowest.
    • When the wheel speed is less than 5 km/h (3 mph).
  • When the vehicle speed is 100 km/h (62 mph) or more, one of the following conditions is met when the difference between the highest wheel speed and the lowest wheel speed is 6% or more*1 for between 9 and 72 seconds or more (period changes depending on vehicle conditions):
    • When the difference between the highest wheel speed and the second highest wheel speed is 5 km/h (3 mph) or more, the wheel speed is high compared to other speed sensors.
    • The value of the wheel speed is continuously the slowest.
    • When the wheel speed is less than 5 km/h (3 mph).
  • Front speed sensor RH
  • Front speed sensor rotor RH (front axle hub sub-assembly RH)
  • Speed sensor installation
  • Tire wear
  • Tire pressure
  • Tire and wheel size

*1: When more than 1 wheel has a wheel speed of less than 5 km/h (3 mph), a difference of 15% is permitted.

*2: When more than 1 wheel has a wheel speed of less than 5 km/h (3 mph), a difference of 16 km/h (10 mph) is permitted.

DTC Detection Conditions: C05061C


Vehicle Condition

Pattern 1

Pattern 2

Pattern 3

Pattern 4

Pattern 5

Pattern 6

Diagnosis Condition

The vehicle is being driven in a straight line at a speed of 20 km/h (12 mph) or more and VSC/TRAC has permission to control vehicle braking.

-

-

-

The vehicle speed is less than 100 km/h (62 mph).

-

-

-

Malfunction Status

When the difference between the highest wheel speed and the lowest wheel speed is 6% or more*1 and the difference between the highest wheel speed and the second highest wheel speed is 5 km/h (3 mph) or more, the wheel speed is high compared to other speed sensors.

-

-

-

-

-

When the difference between the highest wheel speed and the lowest wheel speed is 6% or more*1 and the value of the wheel speed is continuously the slowest.

-

-

-

-

-

When the difference between the highest wheel speed and the lowest wheel speed is 6% or more*1 and the wheel speed is less than 5 km/h (3 mph).

-

-

-

-

-

When the difference between the highest wheel speed and the lowest wheel speed is 6 km/h (4 mph) or more*2 and the difference between the highest wheel speed and the second highest wheel speed is 5 km/h (3 mph) or more, the wheel speed is high compared to other speed sensors.

-

-

-

-

-

When the difference between the highest wheel speed and the lowest wheel speed is 6 km/h (4 mph) or more*2 and the value of the wheel speed is continuously the slowest.

-

-

-

-

-

When the difference between the highest wheel speed and the lowest wheel speed is 6 km/h (4 mph) or more*2 and the wheel speed is less than 5 km/h (3 mph).

-

-

-

-

-

Detection Time

Between 9 and 72 seconds or more (period changes depending on vehicle conditions).

Between 9 and 72 seconds or more (period changes depending on vehicle conditions).

Between 9 and 72 seconds or more (period changes depending on vehicle conditions).

Between 9 and 72 seconds or more (period changes depending on vehicle conditions).

Between 9 and 72 seconds or more (period changes depending on vehicle conditions).

Between 9 and 72 seconds or more (period changes depending on vehicle conditions).

Number of Trips

1 trip

1 trip

1 trip

1 trip

1 trip

1 trip

*1: When more than 1 wheel has a wheel speed of less than 5 km/h (3 mph), a difference of 15% is permitted.

*2: When more than 1 wheel has a wheel speed of less than 5 km/h (3 mph), a difference of 16 km/h (10 mph) is permitted.

HINT:

DTC will be output when conditions for either of the patterns in the table above are met.

DTC Detection Conditions: C05061C


Vehicle Condition

Pattern 7

Pattern 8

Pattern 9

Diagnosis Condition

The vehicle speed is 100 km/h (62 mph) or more.

Malfunction Status

When the difference between the highest wheel speed and the lowest wheel speed is 6% or more*1 and the difference between the highest wheel speed and the second highest wheel speed is 5 km/h (3 mph) or more, the wheel speed is high compared to other speed sensors.

-

-

When the difference between the highest wheel speed and the lowest wheel speed is 6% or more*1 and the value of the wheel speed is continuously the slowest.

-

-

When the difference between the highest wheel speed and the lowest wheel speed is 6% or more*1 and the wheel speed is less than 5 km/h (3 mph).

-

-

Detection Time

Between 9 and 72 seconds or more (period changes depending on vehicle conditions).

Between 9 and 72 seconds or more (period changes depending on vehicle conditions).

Between 9 and 72 seconds or more (period changes depending on vehicle conditions).

Number of Trips

1 trip

1 trip

1 trip

*1: When more than 1 wheel has a wheel speed of less than 5 km/h (3 mph), a difference of 15% is permitted.

HINT:

DTC will be output when conditions for either of the patterns in the table above are met.

CAUTION / NOTICE / HINT

NOTICE:

  • After replacing or removing and installing a speed sensor, perform Dealer Mode (Signal Check) inspection to confirm that the speed sensors are operating correctly.

    Click here

  • After replacing or removing and installing a speed sensor rotor, perform Dealer Mode (Signal Check) inspection to confirm that the speed sensors are operating correctly.

    Click here

  • DTC precaution

    Click here

    Procedure to clear warning lights (When not clearing DTCs)

    Procedure

    1. Repair or replacement.
    2. Turn the ignition switch to ON.
    3. Drive the vehicle at 11 km/h (7 mph) or more for 1 second or more to clear the warning lights.

PROCEDURE

1.

PRE-CHECK

(a) Check that all 4 tires are of correct size, are inflated to the correct pressure, and do not show excessive signs of wear.

Click here

HINT:

If a tire is deformed or an incorrectly sized tire or wheel is installed, this DTC may be stored.

NEXT

2.

CHECK FREEZE FRAME DATA (WHEEL SPEED)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Enter the following menus: Chassis / Brake/EPB / Trouble Codes.

(d) Select a DTC to display the Freeze Frame Data.

(e) Read the freeze frame data of DTC C05061C.

Chassis > Brake

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

FR Wheel Speed

Front wheel speed sensor RH reading

Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph)

Vehicle stopped: 0.0 km/h (0.0 mph)

When driving at constant speed: No large fluctuations

FL Wheel Speed

Front wheel speed sensor LH reading

Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph)

Vehicle stopped: 0.0 km/h (0.0 mph)

When driving at constant speed: No large fluctuations

RR Wheel Speed

Rear wheel speed sensor RH reading

Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph)

Vehicle stopped: 0.0 km/h (0.0 mph)

When driving at constant speed: No large fluctuations

RL Wheel Speed

Rear wheel speed sensor LH reading

Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph)

Vehicle stopped: 0.0 km/h (0.0 mph)

When driving at constant speed: No large fluctuations

Chassis > Brake > DTC(C05061C) > Freeze Frame Data

Tester Display

FR Wheel Speed

FL Wheel Speed

RR Wheel Speed

RL Wheel Speed

Result

Proceed to

The value of FR Wheel Speed is more than all other values.

A

The value of FR Wheel Speed is less than all other values.

B

The value of FR Wheel Speed is less than 5 km/h (3 mph).

C

B

GO TO STEP 4

C

GO TO STEP 7

A

3.

READ VALUE USING TECHSTREAM (WHEEL SPEED)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Enter the following menus: Chassis / Brake/EPB / Data List.

Chassis > Brake > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

FR Wheel Speed

Front wheel speed sensor RH reading

Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph)

Vehicle stopped: 0.0 km/h (0.0 mph)

When driving at constant speed: No large fluctuations

FL Wheel Speed

Front wheel speed sensor LH reading

Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph)

Vehicle stopped: 0.0 km/h (0.0 mph)

When driving at constant speed: No large fluctuations

RR Wheel Speed

Rear wheel speed sensor RH reading

Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph)

Vehicle stopped: 0.0 km/h (0.0 mph)

When driving at constant speed: No large fluctuations

RL Wheel Speed

Rear wheel speed sensor LH reading

Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph)

Vehicle stopped: 0.0 km/h (0.0 mph)

When driving at constant speed: No large fluctuations

Chassis > Brake > Data List

Tester Display

FR Wheel Speed

FL Wheel Speed

RR Wheel Speed

RL Wheel Speed

(d) Start the engine.

(e) Perform a road test under the same malfunction conditions recreated based on the Freeze Frame Data or customer problem analysis.

(f) Check the value of Wheel Speed.

OK:

The difference between the value of FR Wheel Speed and all other values is less than 6%.

HINT:

If the result of the road test is within the specified range, it is possible that this DTC was stored due to a particular situation such as wheelspin.

OK

USE SIMULATION METHOD TO CHECK

NG

REPLACE FRONT SPEED SENSOR RH

4.

READ VALUE USING TECHSTREAM (WHEEL SPEED)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Enter the following menus: Chassis / Brake/EPB / Data List.

Chassis > Brake > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

FR Wheel Speed

Front wheel speed sensor RH reading

Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph)

Vehicle stopped: 0.0 km/h (0.0 mph)

When driving at constant speed: No large fluctuations

FL Wheel Speed

Front wheel speed sensor LH reading

Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph)

Vehicle stopped: 0.0 km/h (0.0 mph)

When driving at constant speed: No large fluctuations

RR Wheel Speed

Rear wheel speed sensor RH reading

Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph)

Vehicle stopped: 0.0 km/h (0.0 mph)

When driving at constant speed: No large fluctuations

RL Wheel Speed

Rear wheel speed sensor LH reading

Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph)

Vehicle stopped: 0.0 km/h (0.0 mph)

When driving at constant speed: No large fluctuations

Chassis > Brake > Data List

Tester Display

FR Wheel Speed

FL Wheel Speed

RR Wheel Speed

RL Wheel Speed

(d) Start the engine.

(e) Perform a road test under the same malfunction conditions recreated based on the Freeze Frame Data or customer problem analysis.

(f) Check the value of Wheel Speed.

OK:

The difference between the value of FR Wheel Speed and all other values is less than 6%.

HINT:

If the result of the road test is within the specified range, it is possible that this DTC was stored due to a particular situation such as brake drag.

OK

USE SIMULATION METHOD TO CHECK

NG

5.

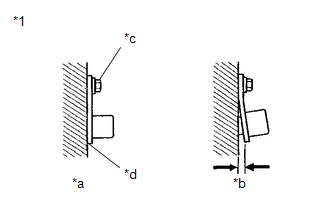

CHECK FRONT SPEED SENSOR RH INSTALLATION

(a) Check the front speed sensor RH installation.

OK:

There is no clearance between the front speed sensor RH and the steering knuckle RH.

The installation bolt is tightened properly.

Torque

8.5 N*m (87 kgf*cm, 75 in.*lbf)

*1

Front Speed Sensor RH

*a

Correct

*b

Incorrect

*c

8.5 N*m

*d

No clearance

NG

REINSTALL OR REPLACE FRONT SPEED SENSOR RH

OK

6.

CHECK FRONT SPEED SENSOR ROTOR RH (CHECK FOR FOREIGN MATTER)

(a) Remove the component with the front speed sensor rotor RH.

Click here

(b) Check the front speed sensor rotor RH.

OK:

The front speed sensor rotor RH is free of scratches, oil, and foreign matter.

NOTICE:

  • If there is oil or foreign matter on the front speed sensor rotor RH, clean the front speed sensor rotor RH.
  • Do not use parts cleaner when cleaning the front speed sensor rotor RH.
  • If the front speed sensor rotor RH is damaged, replace the front axle hub sub-assembly RH with a new one.

Result

Proceed to

OK

A

NG (The front speed sensor rotor RH is damaged.)

B

NG (There is foreign matter on the front speed sensor rotor RH.)

C

A

REPLACE FRONT SPEED SENSOR RH

B

REPLACE FRONT AXLE HUB SUB-ASSEMBLY RH

C

CLEAN FRONT SPEED SENSOR ROTOR RH

7.

READ VALUE USING TECHSTREAM (FR WHEEL SPEED)

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Enter the following menus: Chassis / Brake/EPB / Data List.

Chassis > Brake > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

FR Wheel Speed

Front wheel speed sensor RH reading

Min.: 0.0 km/h (0 mph), Max.: 6553.5 km/h (4072 mph)

Vehicle stopped: 0.0 km/h (0.0 mph)

When driving at constant speed: No large fluctuations

Chassis > Brake > Data List

Tester Display

FR Wheel Speed

(d) Start the engine.

(e) Perform a road test under the same malfunction conditions recreated based on the Freeze Frame Data or customer problem analysis.

(f) Check the value of FR Wheel Speed.

OK:

The value of FR Wheel Speed is 5 km/h (3 mph) or more.

HINT:

If the result of the road test is within the specified range, it is possible that this DTC was stored due to a particular situation such as wheelspin, brake drag or wheel lockup.

When a DTC is stored during operation of ABS or TRAC, the system also stores vehicle control history (RoB) that can be useful for troubleshooting.

Click here

OK

USE SIMULATION METHOD TO CHECK

NG

8.

CHECK FRONT SPEED SENSOR RH INSTALLATION

(a) Check the front speed sensor RH installation.

OK:

There is no clearance between the front speed sensor RH and the steering knuckle RH.

The installation bolt is tightened properly.

Torque

8.5 N*m (87 kgf*cm, 75 in.*lbf)

*1

Front Speed Sensor RH

*a

Correct

*b

Incorrect

*c

8.5 N*m

*d

No clearance

OK

REPLACE FRONT SPEED SENSOR RH

NG

REINSTALL OR REPLACE FRONT SPEED SENSOR RH

    READ NEXT:

     Right Front Wheel Speed Sensor Circuit Intermittent (C05061F)

    DESCRIPTION Refer to DTC C050612 Click here DTC No. Detection Item DTC Detection Condition Trouble Area C05061F Right Front Wheel Speed Sensor Circuit Intermittent

     Right Front Wheel Speed Sensor Signal Stuck Low (C050623)

    DESCRIPTION Refer to DTC C050612 Click here DTC No. Detection Item DTC Detection Condition Trouble Area C050623 Right Front Wheel Speed Sensor Signal Stuck Low

     Right Front Wheel Speed Sensor Signal Stuck High (C050624)

    DESCRIPTION Refer to DTC C050612 Click here DTC No. Detection Item DTC Detection Condition Trouble Area C050624 Right Front Wheel Speed Sensor Signal Stuck High The

    SEE MORE:

     Voice Guidance does not Function

    WIRING DIAGRAM PROCEDURE 1. CHECK VOICE GUIDANCE SETTING (a) Check that the voice guidance settings are not off. OK: Voice guidance settings are not off. NG CHANGE VOICE GUIDANCE SETTINGS TO ON OK 2. CHECK HARNESS AND CONNECT

     Sudden start restraint control (Drive-Start Control [DSC] )

    When the following unusual operation is performed with the accelerator pedal depressed, the engine output may be restrained. When the shift lever is shifted to R*. When the shift lever is shifted from P or R to forward drive shift position such as D*. When the system operates, a message

    © 2023-2024 Copyright www.tocamry.com
