Toyota Camry (XV70): Room Light Bulb

Toyota Camry Repair Manual XV70 (2018-2024) / Vehicle Interior / Lighting (int) / Room Light Bulb

Replacement

REPLACEMENT

PROCEDURE

1. REMOVE REAR ROOM LIGHT BULB

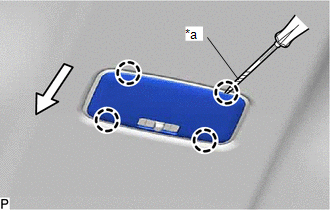

(a) Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws to remove the room light lens.

*a	Protective Tape
	Front

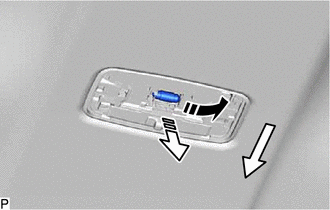

(b) Pull back the tab and remove the rear room light bulb as indicated by the arrows, in the order shown in the illustration.

	Front
	Remove in this Direction (1)
	Remove in this Direction (2)

2. INSTALL REAR ROOM LIGHT BULB

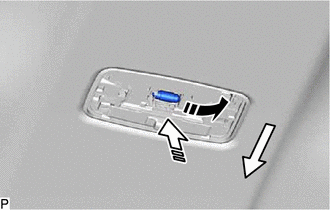

(a) Pull back the tab and install the rear room light bulb as indicated by the arrows, in the order shown in the illustration.

	Front
	Install in this Direction (1)
	Install in this Direction (2)

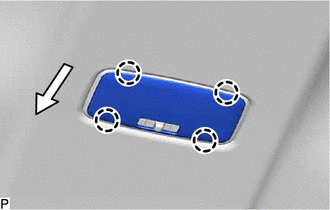

(b) Engage the 4 claws to install the room light lens.

Front
