Toyota Camry (XV70): System Diagram

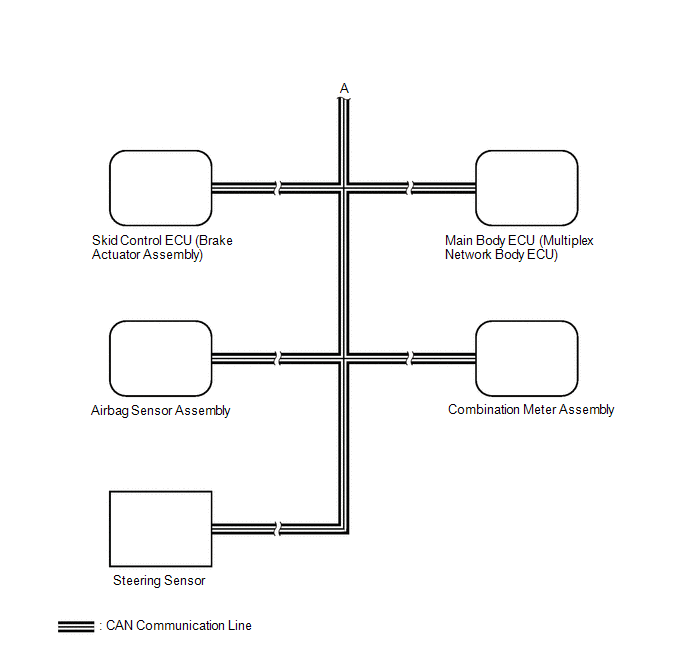

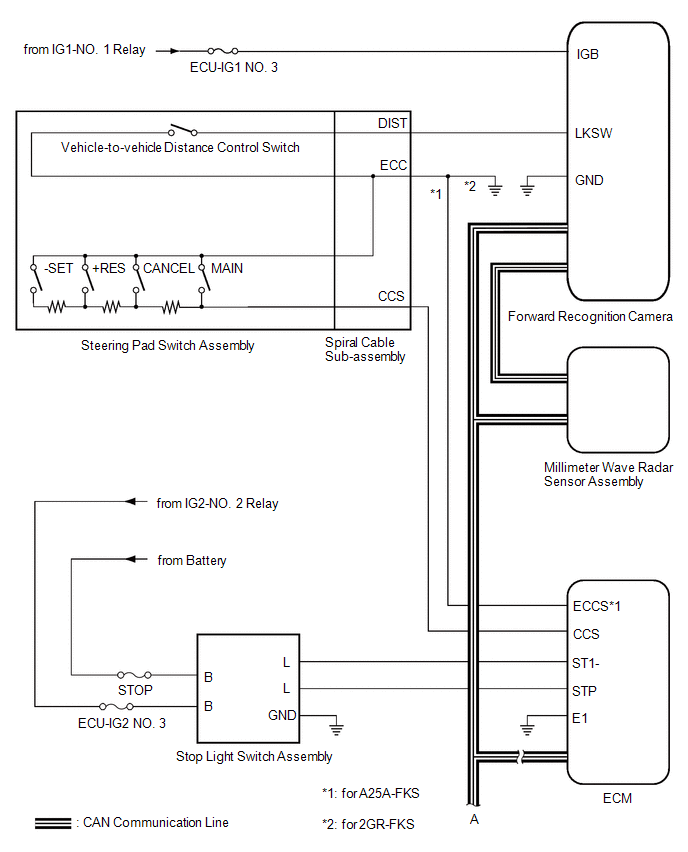

SYSTEM DIAGRAM

    READ NEXT:

     How To Proceed With Troubleshooting

    CAUTION / NOTICE / HINT HINT: Before performing troubleshooting for the dynamic radar cruise control system, perform troubleshooting for the pre-collision system. Click here *: Use the Tec

     Road Test

    ROAD TEST HINT: The dynamic radar cruise control system has 2 cruise control modes: constant speed control mode and vehicle-to-vehicle distance control mode. Vehicle-to-vehicle distance con

     Operation Check

    OPERATION CHECK INPUT SIGNAL CHECK (a) Connect the Techstream to the DLC3. (b) Check the cruise control main switch using the Data List function of the Techstream (cruise control main switch, -SET s

    SEE MORE:

     Removal

    REMOVAL CAUTION / NOTICE / HINT HINT: If the bumper is damaged, there is a possibility that the installation area of the blind spot monitor sensor may be deformed and the blind spot monitor system may not operate correctly, so visually inspect the blind spot monitor sensor installation area (fram

     Cruise Control Input Processor (P160700)

    DESCRIPTION When the ECM detects that it is not functioning normally, DTC P160700 is stored. DTC No. Detection Item DTC Detection Condition Trouble Area MIL DTC Output from P160700 Cruise Control Input Processor When the ignition switch is ON and control of vehi
