Toyota Camry (XV70): System Diagram
Toyota Camry Repair Manual XV70 (2018-2024) / Steering / Steering Column / Heated Steering Wheel System / System Diagram

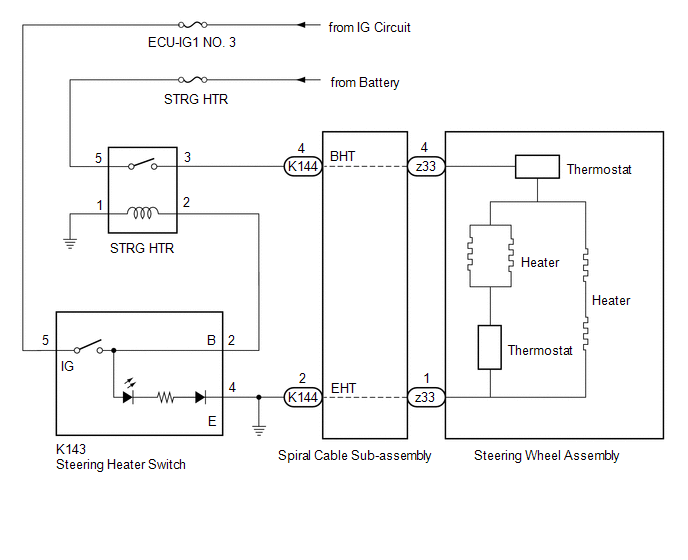

SYSTEM DIAGRAM
SYSTEM DIAGRAM
