Toyota Camry (XV70): Terminals Of Ecu
TERMINALS OF ECU

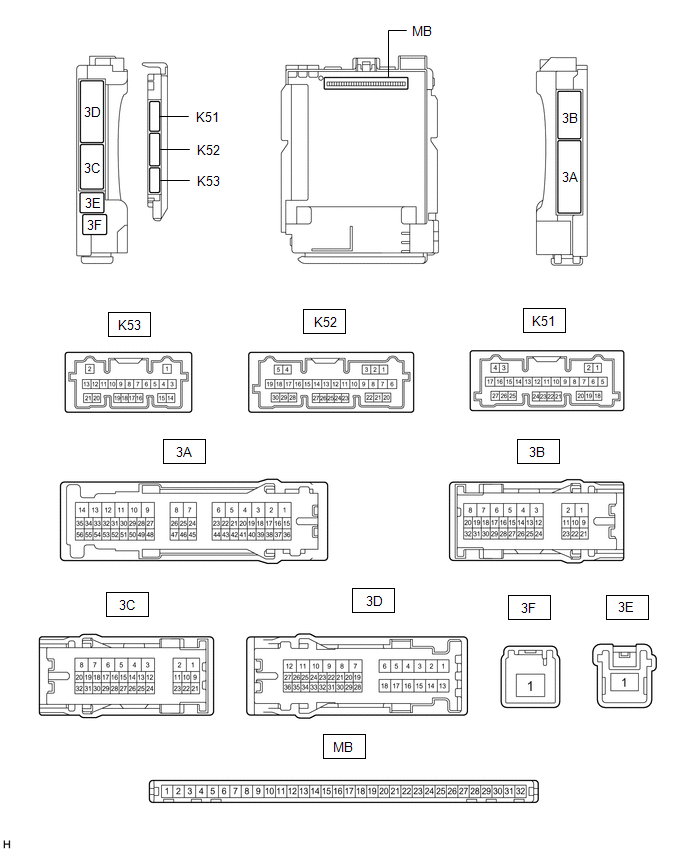

CHECK MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) AND INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
.png)
(a) Remove the main body ECU (multiplex network body ECU) from the instrument panel junction block assembly.
Click here .gif)
(b) Reconnect the instrument panel junction block assembly connectors.
(c) Measure the resistance and voltage according to the value(s) in the table below.
HINT:
Measure the values on the wire harness side with the connector disconnected.
|
Terminal No. (Symbol) | Wiring Color |
Input/Output | Terminal Description |
Condition | Specified Condition |
Related Data List Item |
|---|---|---|---|---|---|---|
|
MB-11 (GND1) - Body ground |
- | - |
Ground | Always |
Below 1 ? | - |
|
MB-30 (ACC) - Body ground |
- | Input |
ACC power supply | Ignition switch ACC |
11 to 14 V |
ACC SW |
| Ignition switch off |
Below 1 V | |||||
|
MB-31 (BECU) - Body ground |
- | Input |
Battery power supply |
Always | 11 to 14 V |
- |
|
MB-32 (IG) - Body ground |
- | Input |
IG power supply | Ignition switch ON |
11 to 14 V |
IG SW |
| Ignition switch off |
Below 1 V |
(d) Install the main body ECU (multiplex network body ECU) to instrument panel junction block assembly.
Click here
(e) Measure the voltage and check for pulses according to the value(s) in the table below.
|
Terminal No. (Symbol) | Wiring Color |
Input/Output | Terminal Description |
Condition | Specified Condition |
Related Data List Item |
|---|---|---|---|---|---|---|
|
3C-29 (BZR) - Body ground |
L - Body ground |
Output | Wireless door lock buzzer output |
Active Test Wireless Buzzer is OFF |
Below 1 V |
- |
| Active Test Wireless Buzzer is ON |
Pulse generation | |||||
|
K53-11 (PRG) - Body ground |
B - Body ground | Output |
Output to door control and tire pressure monitoring system receiver assembly |
Key inserted into ignition key cylinder > Key pulled out of ignition key cylinder |
11 to 14 V > Pulse generation > 11 to 14 V |
- |
| K53-10 (RDA) - Body ground |
R - Body ground | Input |
Input from door control and tire pressure monitoring system receiver assembly | Procedure:
| 11 to 14 V > Pulse generation |
- |
