Toyota Camry (XV70): Torque Converter Clutch Pressure Control Solenoid Control Circuit Short to Battery (P275612)

Toyota Camry Repair Manual XV70 (2018-2024) / Drivetrain / Ua80e (automatic Transmission / Transaxle) / Automatic Transaxle System / Torque Converter Clutch Pressure Control Solenoid Control Circuit Short to Battery (P275612)

DESCRIPTION

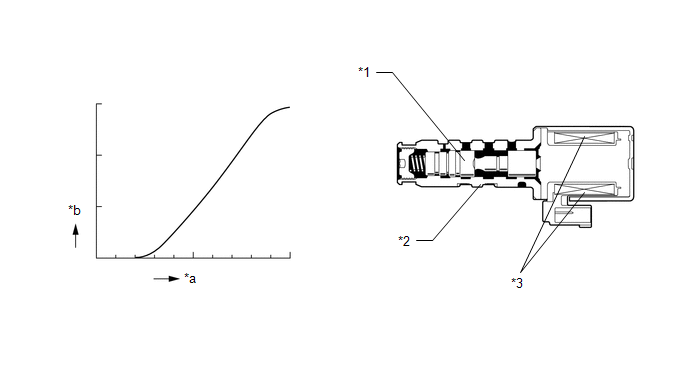

The ECM controls the solenoid (SLU) valve using a predetermined current, and performs lock-up and flex lock-up control.

*1

Spool Valve

*2

Sleeve

*3

Solenoid Coil

-

-

*a

Current

*b

Hydraulic Pressure

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Memory

Note

P275612

Torque Converter Clutch Pressure Control Solenoid Control Circuit Short to Battery

While the vehicle is being driven, a short to +B is detected in the solenoid (SLU) valve circuit for 1 second (1-trip detection logic).
  • Solenoid (SLU) valve
  • Transmission wire
  • Harness and connector
  • ECM

Comes on

DTC stored

SAE Code:

P2763

MONITOR DESCRIPTION

When a short to +B in the solenoid (SLU) valve circuit is detected, the ECM will determine that there is a malfunction, illuminate the MIL and store this DTC.

MONITOR STRATEGY

Related DTCs

P2763: Solenoid (SLU) valve/Range check (High current)

Required sensors/components

Solenoid (SLU) valve

Frequency of operation

Continuous

Duration

1 sec.

MIL operation

Immediate

Sequence of operation

None

TYPICAL ENABLING CONDITIONS

All

The monitor will run whenever the following DTCs are not stored

None

Solenoid current cut status

Not cut

Engine switch

On (IG)

Starter

OFF

Battery voltage

10.5 V or more
Condition (A)

Battery voltage

8 V or more and less than 12.499 V

Target current (0.1 sec. or more)

0.8 A or less
Condition (B)

Battery voltage

12.5 V or more and less than 16 V

Target current (0 sec. or more)

1 A or less

TYPICAL MALFUNCTION THRESHOLDS

Any of the following conditions are met: Condition (A) or (B)

Condition (A)

Battery voltage

8 V or more and less than 12.499 V

Solenoid current

More than 0.92 A
Condition (B)

Battery voltage

12.5 V or more and less than 16 V

Solenoid current

More than 1.1 A

COMPONENT OPERATING RANGE

Both of the following conditions are met: Condition (A) and (B)

Condition (A)

Battery voltage

8 V or more and less than 12.499 V

Solenoid current

0.92 A or less
Condition (B)

Battery voltage

12.5 V or more and less than 16 V

Solenoid current

1.1 A or less

CONFIRMATION DRIVING PATTERN

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.

HINT:

  • After repairs have been completed, clear the DTCs and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.
  • When clearing the permanent DTCs, refer to the Clear Permanent DTC procedure.

    Click here

  1. Connect the Techstream to the DLC3.
  2. Turn the engine switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  4. Turn the engine switch off and wait for 2 minutes or more.
  5. Turn the engine switch on (IG) and turn the Techstream on.
  6. Start the engine.
  7. Perform the Lock-up Function inspection in Road Test. [*1]

    Click here

    HINT:

    [*1] : Normal judgment procedure.

    The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

  8. Stop the vehicle.
  9. Enter the following menus: Powertrain / Transmission / Utility / All Readiness.
  10. Input the DTC: P275612.
  11. Check the DTC judgment result.

    Techstream Display

    Description

    NORMAL
    • DTC judgment completed
    • System normal

    ABNORMAL
    • DTC judgment completed
    • System abnormal

    INCOMPLETE
    • DTC judgment not completed
    • Perform driving pattern after confirming DTC enabling conditions

    N/A
    • Unable to perform DTC judgment
    • Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit

    HINT:

    • If the judgment result shows NORMAL, the system is normal.
    • If the judgment result shows ABNORMAL, the system has a malfunction.
    • If the judgment result shows INCOMPLETE or N/A, perform the normal judgment procedure again.

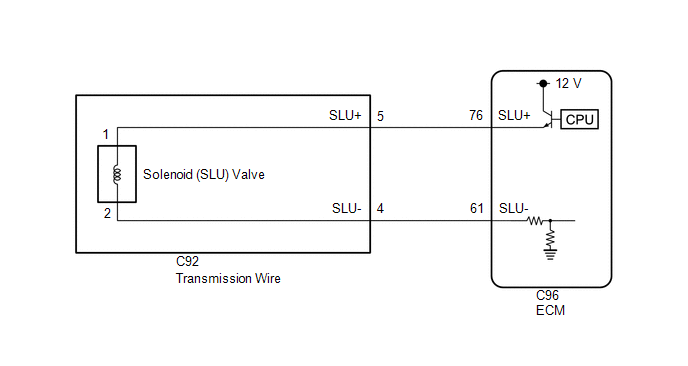

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

  • Perform the universal trip to clear permanent DTCs.

    Click here

  • Perform registration and/or initialization when parts related to the automatic transaxle are replaced.

    Click here

PROCEDURE

1.

CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE (SOLENOID (SLU) VALVE) - ECM)

(a) Disconnect the C96 ECM connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

C96-76 (SLU+) or C96-61 (SLU-) - Other terminals

Always

10 kΩ or higher
NG

GO TO STEP 3

OK

2.

REPLACE ECM

(a) Replace the ECM.

Click here

NEXT

PERFORM REGISTRATION

3.

CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE - ECM)

(a) Disconnect the C92 transmission wire connector.

(b) Disconnect the C96 ECM connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

C92-5 (SLU+) or C96-76 (SLU+) - Other terminals

Always

10 kΩ or higher

C92-4 (SLU-) or C96-61 (SLU-) - Other terminals

Always

10 kΩ or higher
NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (TRANSMISSION WIRE - ECM)
OK

4.

INSPECT SOLENOID (SLU) VALVE

(a) Remove the solenoid (SLU) valve.

Click here

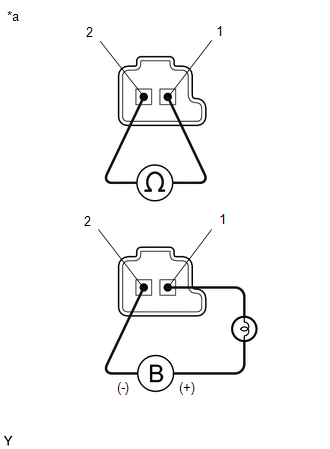

*a

Component without harness connected

(Solenoid (SLU) Valve)

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

Solenoid (SLU) valve connector terminal 1 - terminal 2

20
