Toyota Camry (XV70): Vanity Light Switch
Components
COMPONENTS

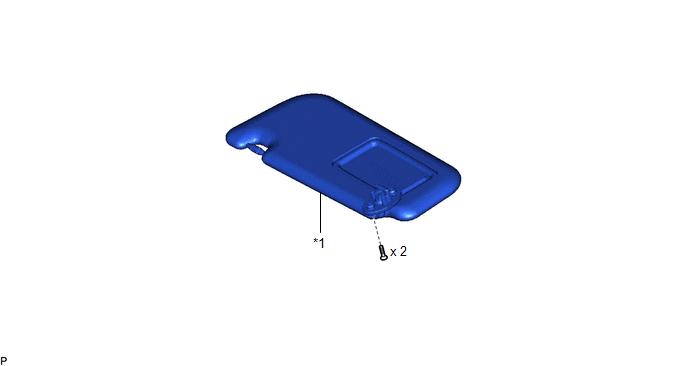

ILLUSTRATION
|
*1 | VISOR ASSEMBLY |
- | - |
Removal
REMOVAL
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. REMOVE VISOR ASSEMBLY
Click here
.gif)
Inspection
INSPECTION
PROCEDURE
1. INSPECT VISOR ASSEMBLY LH
|

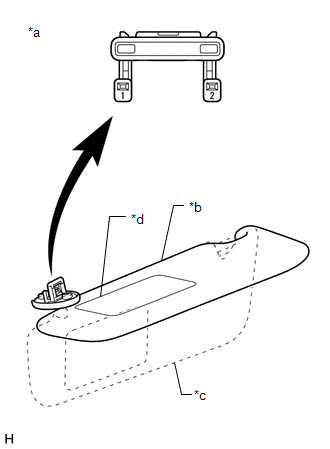

*a | Component without harness connected (Visor Assembly LH) |
|
*b | Visor up |
|
*c | Visor down |
|
*d | Mirror Cover |
(a) Inspect the vanity light switch.
(1) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection | Condition |
Specified Condition |
|---|---|---|
|
1 - 2 | Visor up |
10 k? or higher |
|
1 - 2 | Mirror cover fully closed with visor down |
10 k? or higher |
|
1 - 2 | Mirror cover fully open with visor down |
Below 1 ? |
If the result is not as specified, replace the visor assembly LH.
2. INSPECT VISOR ASSEMBLY RH
|

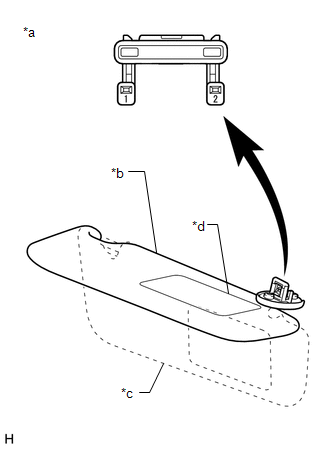

*a | Component without harness connected (Visor Assembly RH) |
|
*b | Visor up |
|
*c | Visor down |
|
*d | Mirror Cover |
(a) Inspect the vanity light switch.
(1) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection | Condition |
Specified Condition |
|---|---|---|
|
1 - 2 | Visor up |
10 k? or higher |
|
1 - 2 | Mirror cover fully closed with visor down |
10 k? or higher |
|
1 - 2 | Mirror cover fully open with visor down |
Below 1 ? |
If the result is not as specified, replace the visor assembly RH.
Installation
INSTALLATION
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. INSTALL VISOR ASSEMBLY
Click here
.gif)
