Components
COMPONENTS

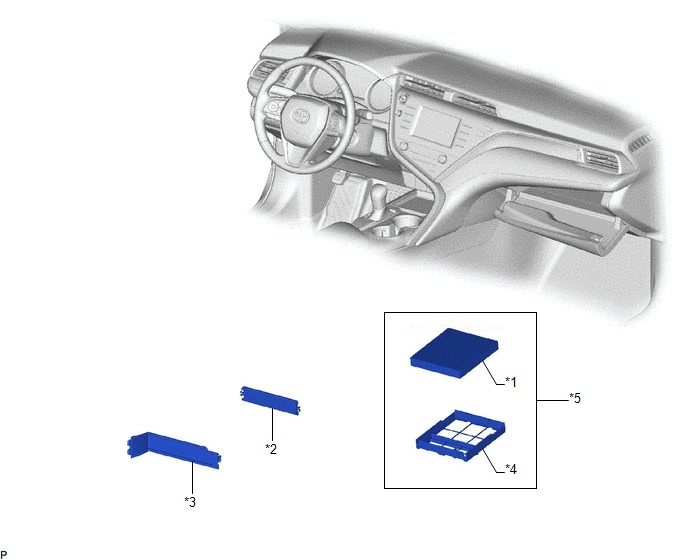

ILLUSTRATION
|
*1 | CLEAN AIR FILTER |
*2 | AIR FILTER COVER PLATE |
|
*3 | LOWER INSTRUMENT COVER LH |
*4 | AIR FILTER CASE |
|
*5 | AIR FILTER SUB-ASSEMBLY |
- | - |
Removal
REMOVAL
PROCEDURE
1. REMOVE CLEAN AIR FILTER
Click here
.gif)
Installation
INSTALLATION
PROCEDURE
1. INSTALL CLEAN AIR FILTER
Click here
.gif)
