Toyota Camry (XV70): Components

Toyota Camry Repair Manual XV70 (2018-2024) / Vehicle Interior / Heating / Air Conditioning / Air Conditioning Pressure Sensor / Components

COMPONENTS

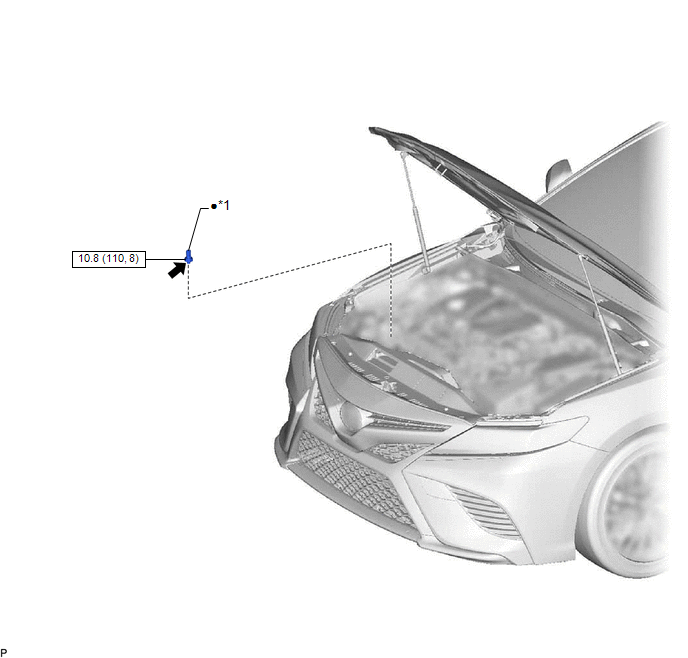

ILLUSTRATION

*1

AIR CONDITIONER PRESSURE SENSOR

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

?

Non-reusable part

Compressor oil ND-OIL 12 or equivalent

-

-
