Toyota Camry (XV70): Installation
INSTALLATION
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. PRECAUTION
NOTICE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.
Click here .gif)
2. INSTALL FRONT DOOR BELT MOULDING ASSEMBLY

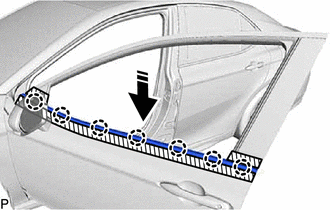

.png) |
Install in this Direction |
(a) Engage the 7 claws to install a new front door belt moulding assembly as shown in the illustration.
3. INSTALL FRONT DOOR GLASS SUB-ASSEMBLY
Click here
4. INSTALL FRONT DOOR SERVICE HOLE COVER
Click here
5. INSTALL FRONT DOOR INNER GLASS WEATHERSTRIP WITH FRONT DOOR VENT SEAL
Click here
6. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY
Click here
7. INSTALL FRONT DOOR TRIM PLATE (w/o Courtesy Light)
Click here
8. INSTALL COURTESY LIGHT ASSEMBLY (w/ Courtesy Light)
Click here
9. INSTALL FRONT ARMREST ASSEMBLY
Click here
10. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)
Click here
11. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)
Click here
12. INSTALL FRONT DOOR ARMREST COVER SUB-ASSEMBLY
Click here
13. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH
Click here
14. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
for A25A-FKS:
Click here
for 2GR-FKS:
Click here
15. INITIALIZE POWER WINDOW CONTROL SYSTEM
Click here
16. INSPECT POWER WINDOW OPERATION
Click here
