Toyota Camry Repair Manual XV70 (2018-2024) / Vehicle Exterior / Exterior Panels / Trim / Front Door Window Frame Moulding / Components

COMPONENTS

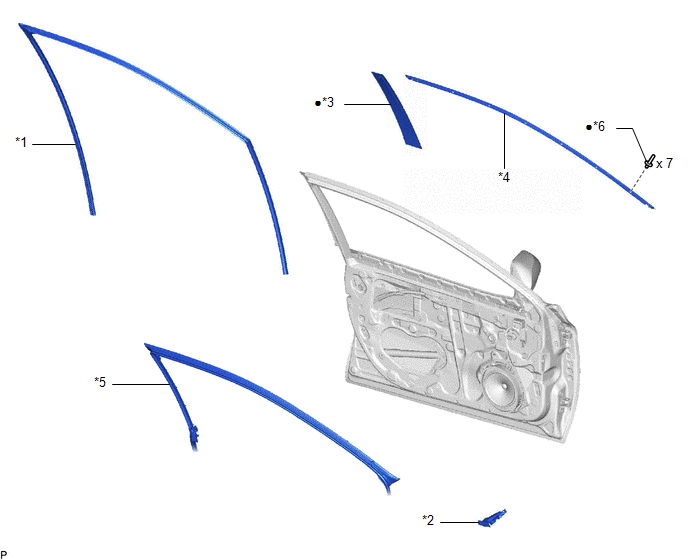

ILLUSTRATION

*1

FRONT DOOR GLASS RUN

*2

FRONT DOOR PANEL PROTECTOR

*3

FRONT DOOR REAR WINDOW FRAME MOULDING

*4

FRONT DOOR UPPER WINDOW FRAME MOULDING

*5

FRONT DOOR WEATHERSTRIP

*6

RIVET

●

Non-reusable part

-

-
