Toyota Camry (XV70): Removal
REMOVAL
PROCEDURE
1. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM
Click here .gif)
2. REMOVE AIR CONDITIONER PRESSURE SENSOR

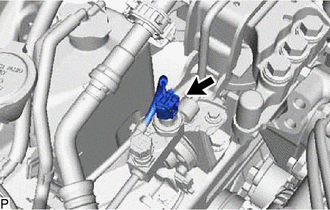

| (a) Disconnect the connector. |
|

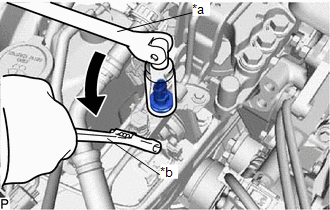

| (b) Using a 27 mm deep socket wrench, remove the air conditioner pressure sensor as shown in the illustration. NOTICE: Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter. |
|
