Toyota Camry (XV70): Black Out Tape (for Rear Door)

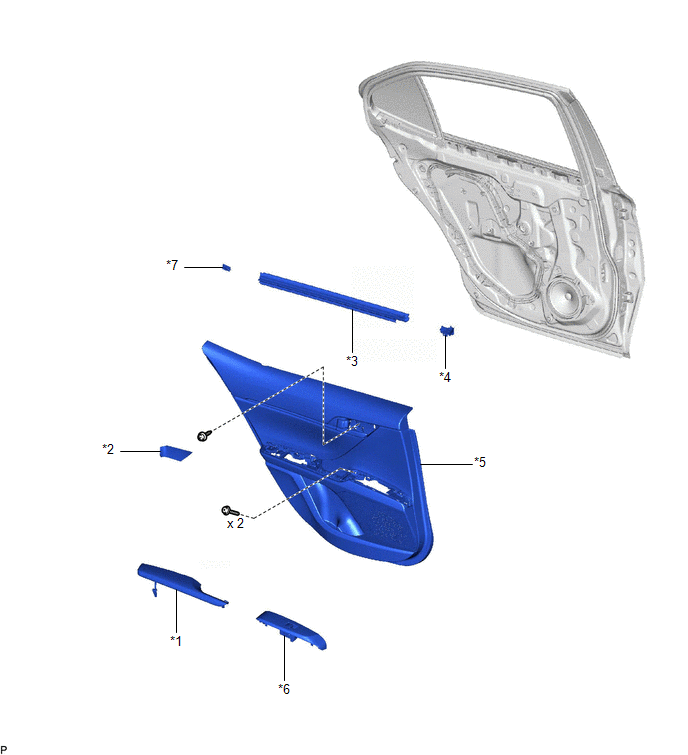

*1

REAR ARMREST ASSEMBLY

*2

REAR DOOR ARMREST COVER SUB-ASSEMBLY

*3

REAR DOOR INNER GLASS WEATHERSTRIP

*4

REAR DOOR NO. 2 SERVICE HOLE COVER

*5

REAR DOOR TRIM BOARD SUB-ASSEMBLY

*6

REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL

*7

NO. 1 DOOR SCUFF PLATE CLAMP

-

-

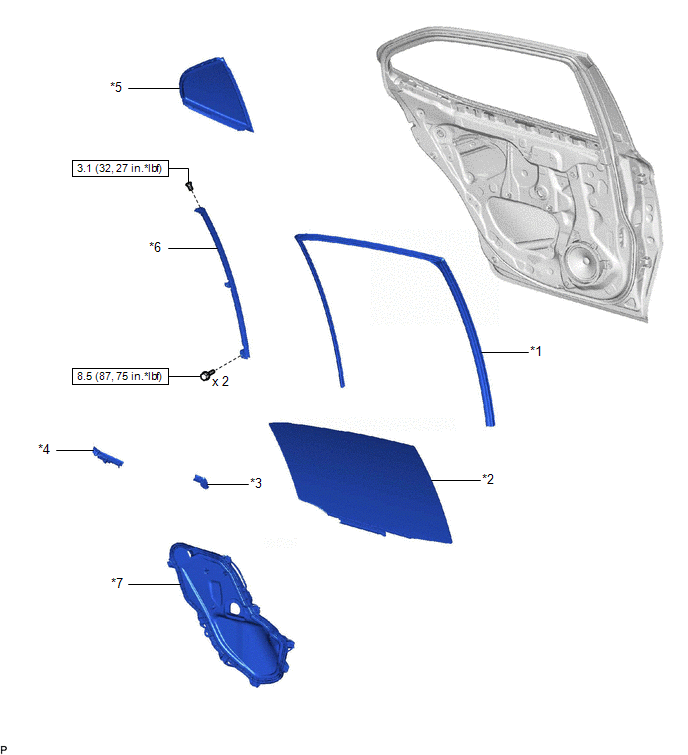

*1

REAR DOOR GLASS RUN

*2

REAR DOOR GLASS SUB-ASSEMBLY

*3

REAR DOOR NO. 1 VENT SEAL

*4

REAR DOOR PANEL PROTECTOR

*5

REAR DOOR QUARTER WINDOW GLASS

*6

REAR DOOR REAR LOWER WINDOW FRAME SUB-ASSEMBLY

*7

REAR DOOR SERVICE HOLE COVER

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

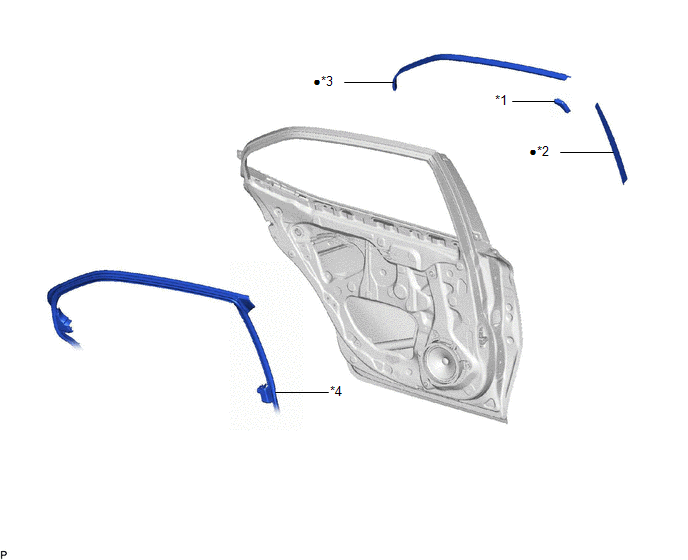

*1

REAR DOOR FRAME GARNISH

*2

REAR DOOR LOWER OUTSIDE STRIPE

*3

REAR DOOR OUTSIDE STRIPE

*4

REAR DOOR WEATHERSTRIP

●

Non-reusable part

-

-
