Toyota Camry Repair Manual XV70 (2018-2024) / Drivetrain / Axle And Differential / Rear Axle Hub (for 2wd With Electric Parking Brake System) / Components

COMPONENTS

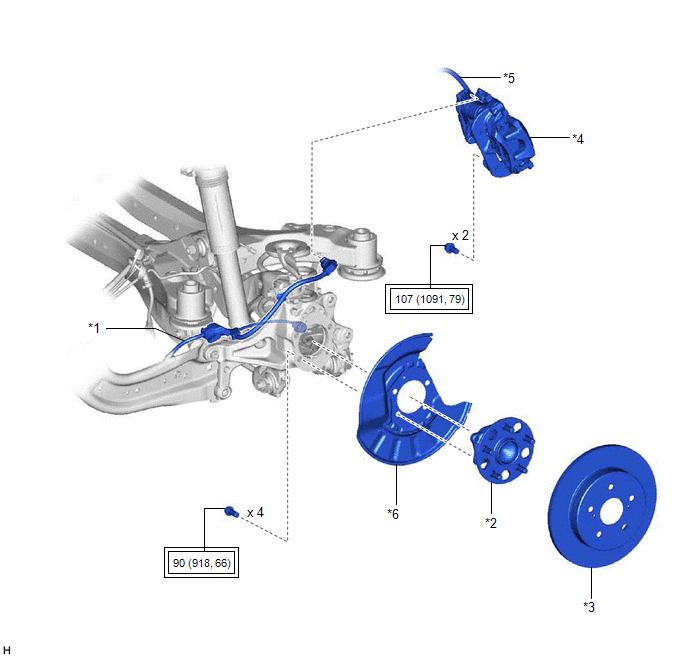

ILLUSTRATION

*1

NO. 2 PARKING BRAKE WIRE ASSEMBLY

*2

REAR AXLE HUB AND BEARING ASSEMBLY

*3

REAR DISC

*4

REAR DISC BRAKE CALIPER ASSEMBLY

*5

REAR FLEXIBLE HOSE

*6

REAR DISC BRAKE DUST COVER SUB-ASSEMBLY

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

-

-
