Toyota Camry Repair Manual XV70 (2018-2024) / Steering / Steering Column / Steering Pad Switch / Components
COMPONENTS

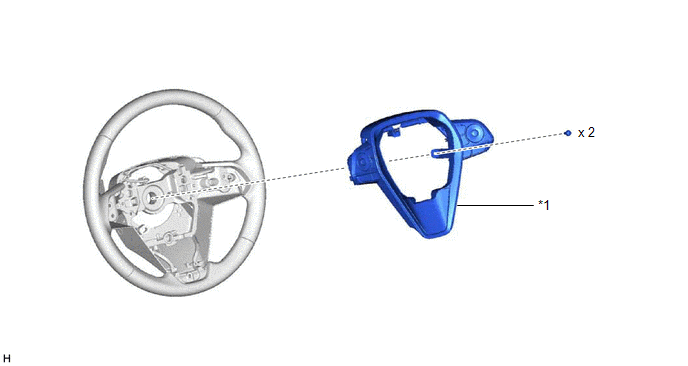

ILLUSTRATION
|
*1 | STEERING PAD SWITCH ASSEMBLY |
- | - |
READ NEXT:
Removal
REMOVAL CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during
Inspection
INSPECTION PROCEDURE 1. INSPECT STEERING PAD SWITCH ASSEMBLY
(a) Measure the resistance according to the value(s) in the table below.
*a Component without harness connected
(Ste
Installation
INSTALLATION PROCEDURE 1. INSTALL STEERING PAD SWITCH ASSEMBLY
(a) Engage the 4 claws and 3 pins to install the steering pad switch assembly.
(b) Install the 2 screws. (c) Connect the steering p
