Toyota Camry (XV70): Removal
REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during steering pad switch assembly removal/installation are shown below.
Necessary Procedures After Parts Removed/Installed/Replaced|
Replaced Part or Performed Procedure |
Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed |
Link |
|---|---|---|---|
|
Disconnect cable from negative battery terminal |
Perform steering sensor zero point calibration |
Lane tracing assist system |
|
|
Pre-collision system | |||
|
Memorize steering angle neutral point |
Parking assist monitor system |
| |
|
Panoramic view monitor system |
|
PROCEDURE
1. REMOVE HORN BUTTON ASSEMBLY
Click here
.gif)
2. REMOVE STEERING PAD SWITCH ASSEMBLY
(a) Disconnect the steering pad switch connector from the spiral cable with sensor sub-assembly.

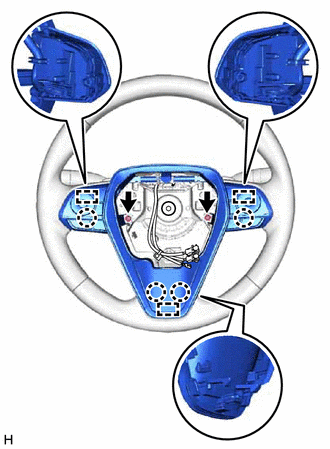

| (b) Remove the 2 screws. |
|
(c) Disengage the 4 claws and 3 pins to remove the steering pad switch assembly.
