COMPONENTS

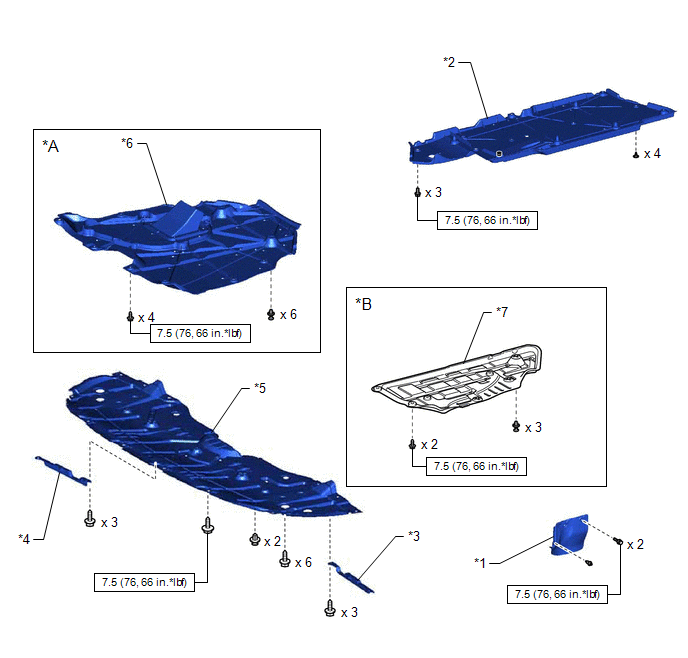

ILLUSTRATION

*A

for A25A-FKS

*B

for 2GR-FKS

*1

FRONT FENDER APRON SEAL LH

*2

FRONT FLOOR COVER LH

*3

FRONT WHEEL OPENING EXTENSION PAD LH

*4

FRONT WHEEL OPENING EXTENSION PAD RH

*5

NO. 1 ENGINE UNDER COVER

*6

NO. 2 ENGINE UNDER COVER ASSEMBLY

*7

REAR ENGINE UNDER COVER LH

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

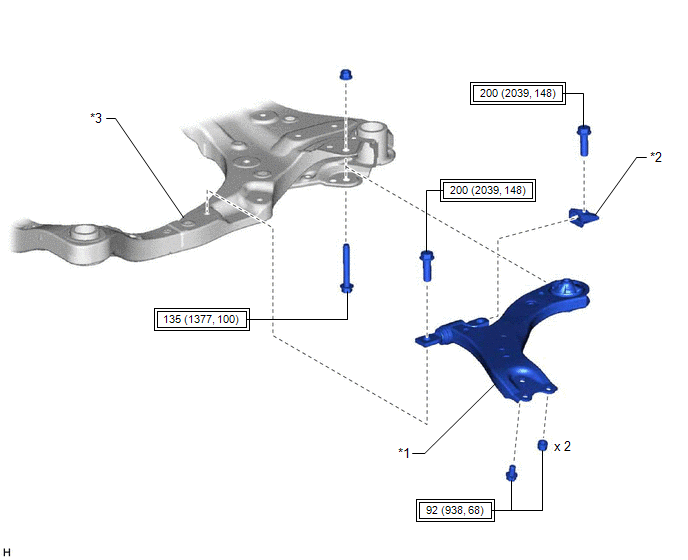

ILLUSTRATION

*1

FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY

*2

FRONT LOWER ARM BUSHING STOPPER

*3

FRONT FRAME ASSEMBLY

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-
