Toyota Camry (XV70): Components

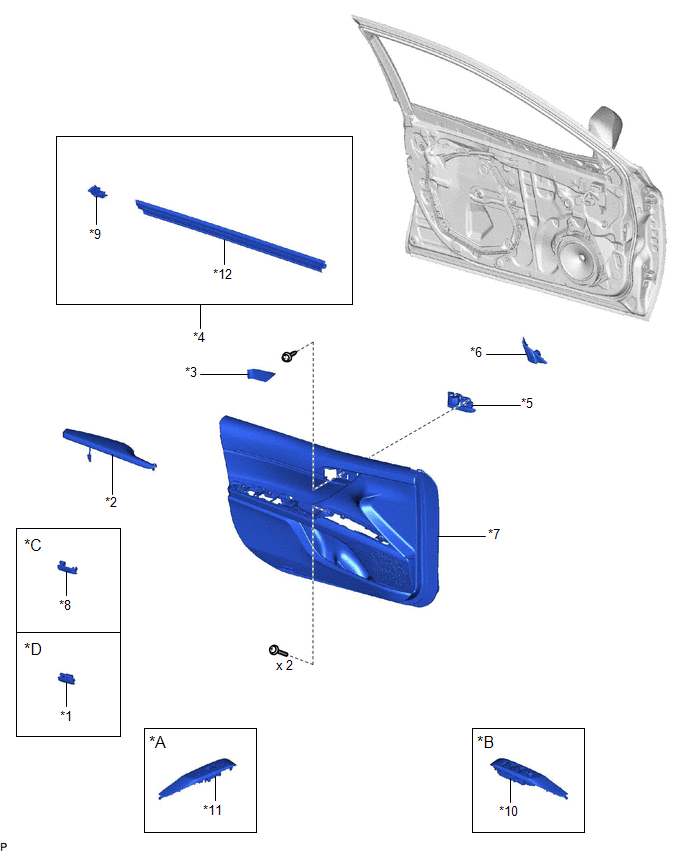

*A

for Front Passenger Side

*B

for Driver Side

*C

w/o Courtesy Light

*D

w/ Courtesy Light

*1

COURTESY LIGHT ASSEMBLY

*2

FRONT ARMREST ASSEMBLY

*3

FRONT DOOR ARMREST COVER SUB-ASSEMBLY

*4

FRONT DOOR INNER GLASS WEATHERSTRIP WITH FRONT DOOR VENT SEAL

*5

FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY

*6

FRONT DOOR LOWER FRAME BRACKET GARNISH

*7

FRONT DOOR TRIM BOARD SUB-ASSEMBLY

*8

FRONT DOOR TRIM PLATE

*9

FRONT DOOR VENT SEAL

*10

MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

*11

POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

*12

FRONT DOOR INNER GLASS WEATHERSTRIP

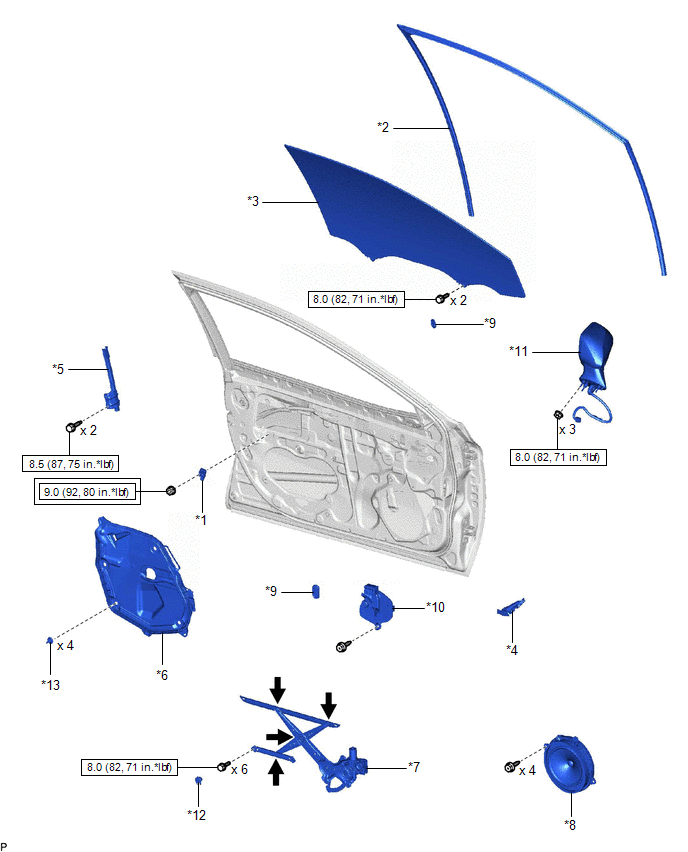

*1

DOOR SIDE AIRBAG SENSOR

*2

FRONT DOOR GLASS RUN

*3

FRONT DOOR GLASS SUB-ASSEMBLY

*4

FRONT DOOR PANEL PROTECTOR

*5

FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY

*6

FRONT DOOR SERVICE HOLE COVER

*7

FRONT DOOR WINDOW REGULATOR ASSEMBLY

*8

FRONT NO. 1 SPEAKER ASSEMBLY

*9

HOLE PLUG

*10

OUTER MIRROR INSTALL HOLE COVER

*11

OUTER REAR VIEW MIRROR ASSEMBLY WITH COVER

*12

FRONT DOOR NO. 2 SERVICE HOLE COVER

*13

FRONT DOOR WEATHERSTRIP CLIP

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

MP grease

-

-

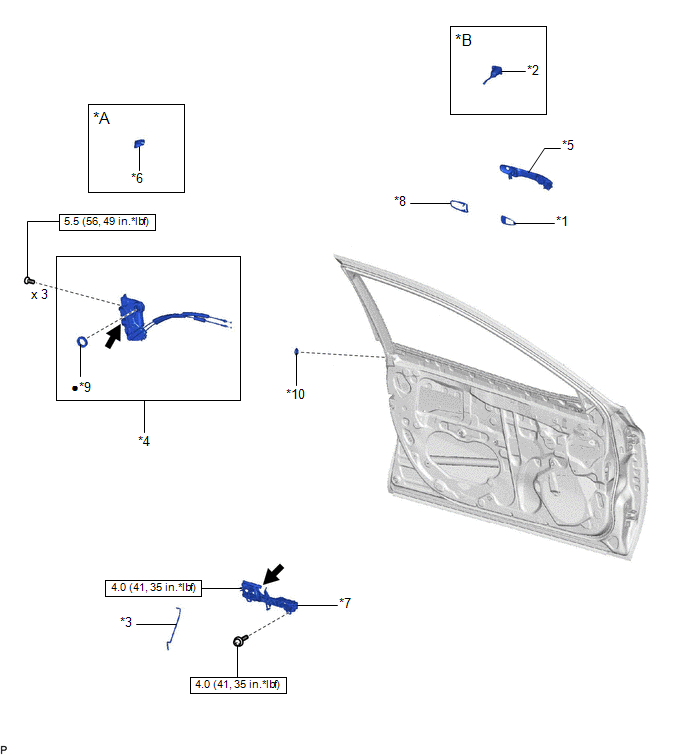

*A

for Front Passenger Side

*B

for Driver Side

*1

FRONT DOOR FRONT OUTSIDE HANDLE PAD

*2

FRONT DOOR LOCK CYLINDER ASSEMBLY

*3

FRONT DOOR LOCK OPEN ROD

*4

FRONT DOOR LOCK WITH MOTOR ASSEMBLY

*5

FRONT DOOR OUTSIDE HANDLE ASSEMBLY

*6

FRONT DOOR OUTSIDE HANDLE COVER

*7

FRONT DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY

*8

FRONT DOOR REAR OUTSIDE HANDLE PAD

*9

DOOR LOCK WIRING HARNESS SEAL

*10

HOLE PLUG

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

MP grease

-

-

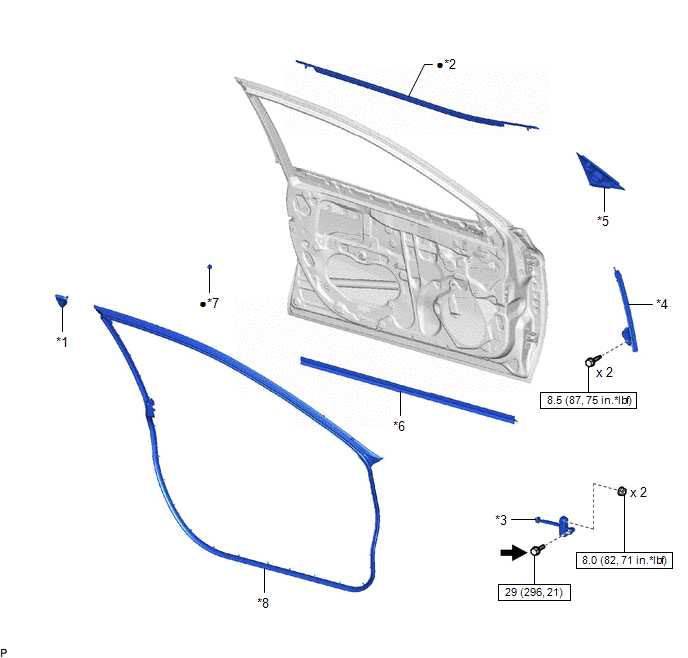

*1

DOOR FRAME GARNISH

*2

FRONT DOOR BELT MOULDING ASSEMBLY

*3

FRONT DOOR CHECK ASSEMBLY

*4

FRONT DOOR FRONT LOWER FRAME SUB-ASSEMBLY

*5

FRONT DOOR FRONT LOWER FRAME UPPER COVER

*6

FRONT DOOR NO. 2 WEATHERSTRIP

*7

FRONT DOOR PANEL CUSHION

*8

FRONT DOOR WEATHERSTRIP

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

★

Precoated part

*1

DOOR WINDOW FRAME MOULDING CLIP

*2

FRONT DOOR REAR OUTSIDE SEAL

*3

FRONT DOOR REAR WINDOW FRAME MOULDING

*4

FRONT DOOR UPPER WINDOW FRAME MOULDING

*5

RIVET

-

-

●

Non-reusable part

-

-
