Toyota Camry Repair Manual XV70 (2018-2024) / Vehicle Exterior / Door / Hatch / Luggage Compartment Door Support / Components

COMPONENTS

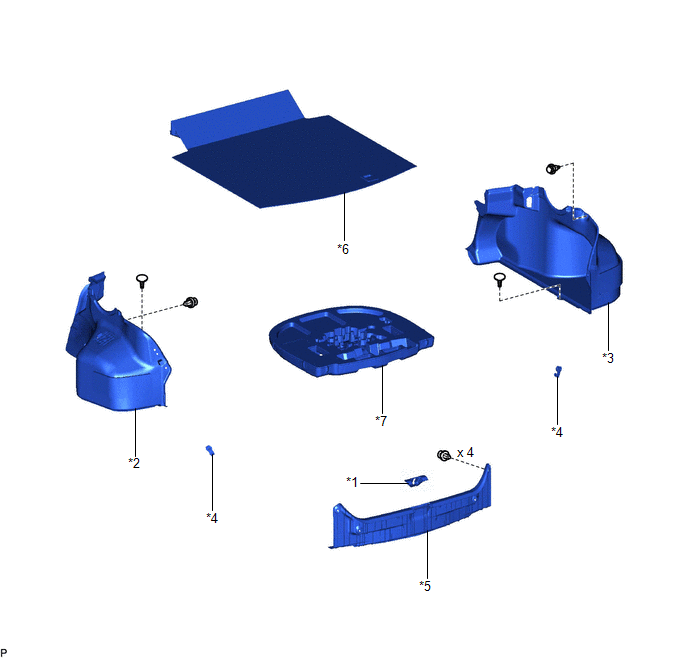

ILLUSTRATION

*1

LUGGAGE COMPARTMENT DOOR STRIKER COVER

*2

LUGGAGE COMPARTMENT TRIM INNER COVER LH

*3

LUGGAGE COMPARTMENT TRIM INNER COVER RH

*4

NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

*5

REAR FLOOR FINISH PLATE

*6

SPARE WHEEL COVER ASSEMBLY

*7

SPARE WHEEL COVER TRAY

-

-

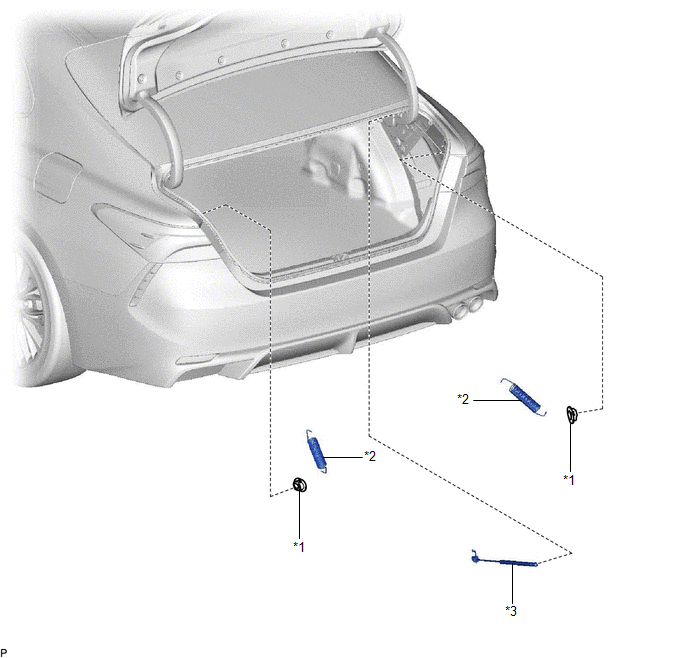

ILLUSTRATION

*1

BACK DOOR LOCK UPPER BUSH

*2

BACK DOOR STAY SPRING

*3

LUGGAGE COMPARTMENT DOOR SUPPORT ASSEMBLY

-

-

    READ NEXT:

     Removal

    REMOVAL CAUTION / NOTICE / HINT CAUTION: If the luggage compartment door support assembly is removed, the luggage compartment door will slam shut. Make sure to support the luggage compartment door

     Installation

    INSTALLATION CAUTION / NOTICE / HINT CAUTION: After installing the luggage compartment door support assembly, use your hand to open and close the luggage door. Make sure the luggage door can open a

     Disposal

    DISPOSAL PROCEDURE 1. DISPOSE OF LUGGAGE COMPARTMENT DOOR SUPPORT ASSEMBLY (a) Secure the luggage compartment door support assembly horizontally in a vise with the piston rod pulled out.
