DISPOSAL

PROCEDURE

1. DISPOSE OF LUGGAGE COMPARTMENT DOOR SUPPORT ASSEMBLY

(a) Secure the luggage compartment door support assembly horizontally in a vise with the piston rod pulled out.

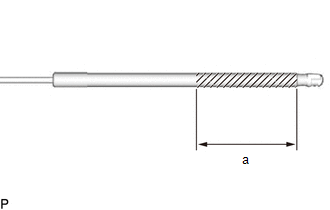

(b) Wearing safety glasses, gradually cut a part within the area (a) shown in the illustration using a metal saw to drain the oil.

Specification:

Area

Measurement

a

50 mm (1.97 in.)

NOTICE:

While cutting the luggage compartment door support assembly, oil may spray out. Therefore, cover the luggage compartment door support assembly with a piece of cloth or other material.
