Toyota Camry Repair Manual XV70 (2018-2024) / Vehicle Exterior / Exterior Panels / Trim / Windshield Outside Moulding / Components

COMPONENTS

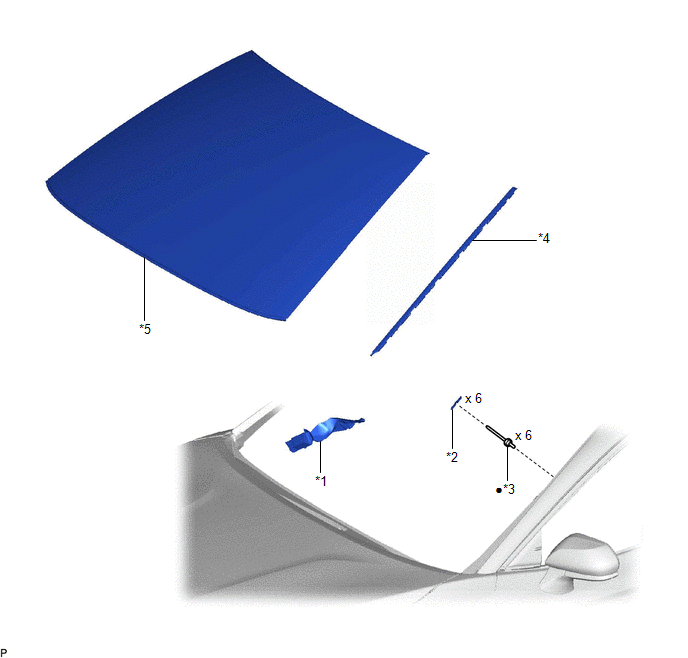

ILLUSTRATION

*1

FRONT FENDER TO COWL SIDE SEAL

*2

NO. 1 WINDSHIELD OUTSIDE MOULDING CLIP

*3

NO. 3 WINDSHIELD OUTSIDE MOULDING CLIP

*4

WINDSHIELD OUTSIDE MOULDING

*5

WINDSHIELD GLASS SUB-ASSEMBLY

-

-

●

Non-reusable part

-

-
