Toyota Camry (XV70): Components
COMPONENTS

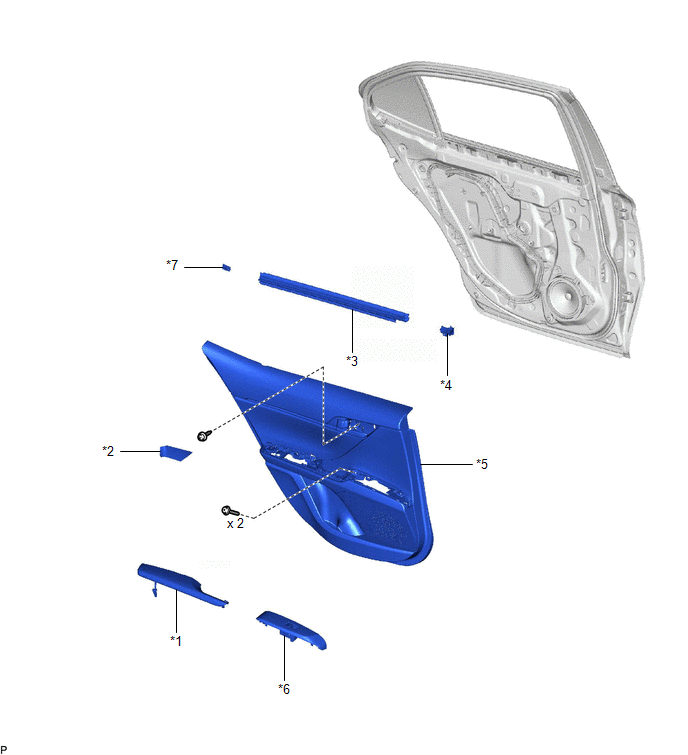

ILLUSTRATION
|
*1 | REAR ARMREST ASSEMBLY |
*2 | REAR DOOR ARMREST COVER SUB-ASSEMBLY |
|
*3 | REAR DOOR INNER GLASS WEATHERSTRIP |
*4 | REAR DOOR NO. 2 SERVICE HOLE COVER |
|
*5 | REAR DOOR TRIM BOARD SUB-ASSEMBLY |
*6 | REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL |
|
*7 | NO. 1 DOOR SCUFF PLATE CLAMP |
- | - |

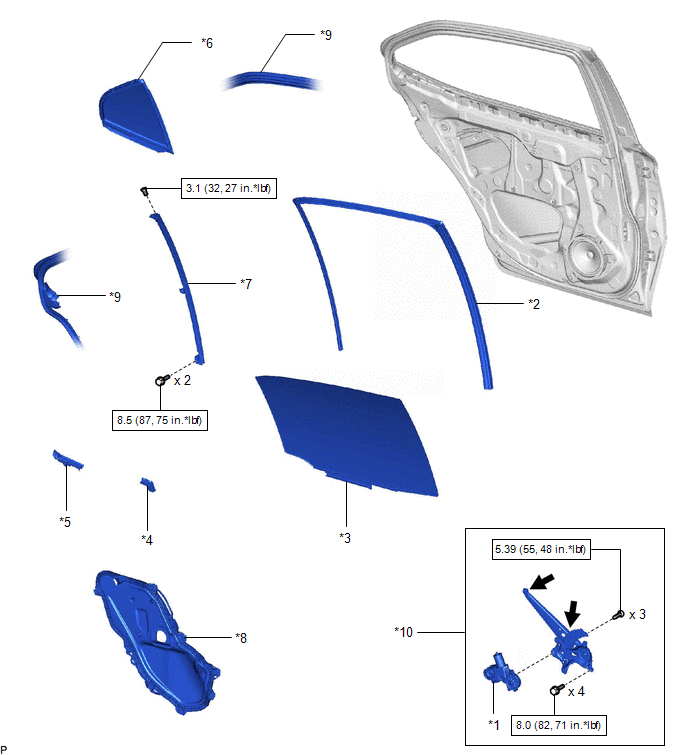

ILLUSTRATION
|
*1 | POWER WINDOW REGULATOR MOTOR ASSEMBLY |
*2 | REAR DOOR GLASS RUN |
|
*3 | REAR DOOR GLASS SUB-ASSEMBLY |
*4 | REAR DOOR NO. 1 VENT SEAL |
|
*5 | REAR DOOR PANEL PROTECTOR |
*6 | REAR DOOR QUARTER WINDOW GLASS |
|
*7 | REAR DOOR REAR LOWER WINDOW FRAME SUB-ASSEMBLY |
*8 | REAR DOOR SERVICE HOLE COVER |
|
*9 | REAR DOOR WEATHERSTRIP |
*10 | REAR DOOR WINDOW REGULATOR ASSEMBLY |
.png) |
N*m (kgf*cm, ft.*lbf): Specified torque |
.png) |
MP grease |
