Toyota Camry (XV70): Components

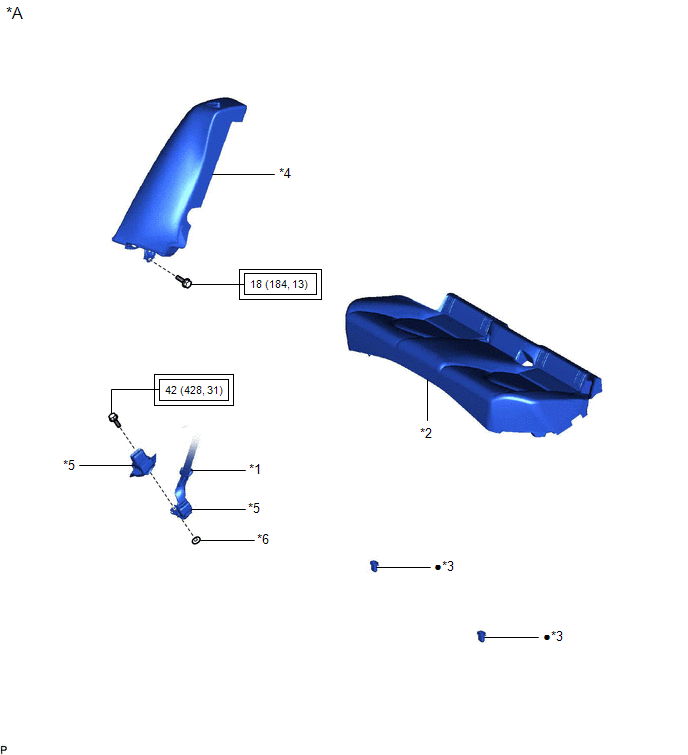

*A

for Fold Down Seat Type

-

-

*1

REAR CENTER SEAT OUTER BELT ASSEMBLY

*2

REAR SEAT CUSHION ASSEMBLY

*3

REAR SEAT CUSHION LOCK HOOK

*4

REAR SIDE SEATBACK ASSEMBLY RH

*5

REAR SEAT INNER BELT ASSEMBLY RH

*6

WASHER

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

?

Non-reusable part

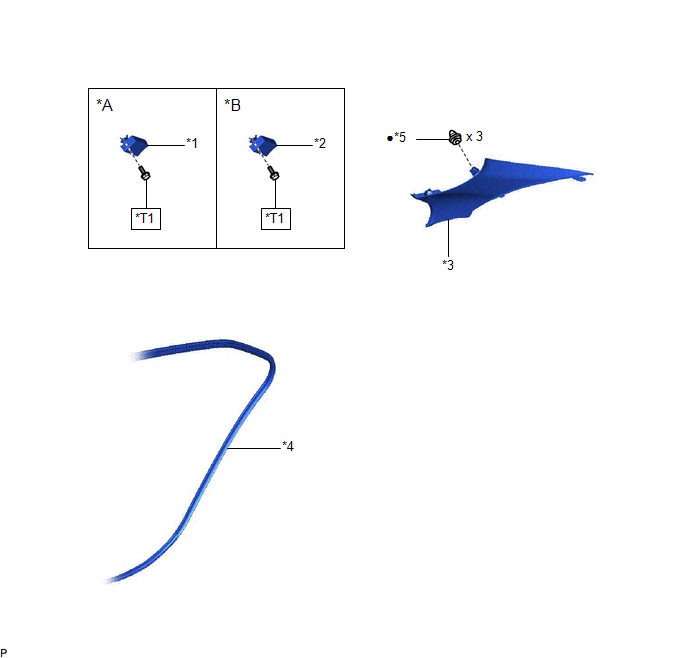

*A

w/o Smart Key System

*B

w/ Smart Key System

*1

DOOR CONTROL AND TIRE PRESSURE WARNING ECU AND RECEIVER

*2

ELECTRICAL KEY AND TIRE PRESSURE WARNING ECU AND RECEIVER

*3

INNER ROOF SIDE GARNISH RH

*4

REAR DOOR OPENING TRIM WEATHERSTRIP RH

*5

CLIP

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

?

Non-reusable part

*T1

for Type A: 8.3 (85, 73 in.*lbf)

for Type B: 10 (102, 7)

-

-
