Toyota Camry (XV70): Components
COMPONENTS

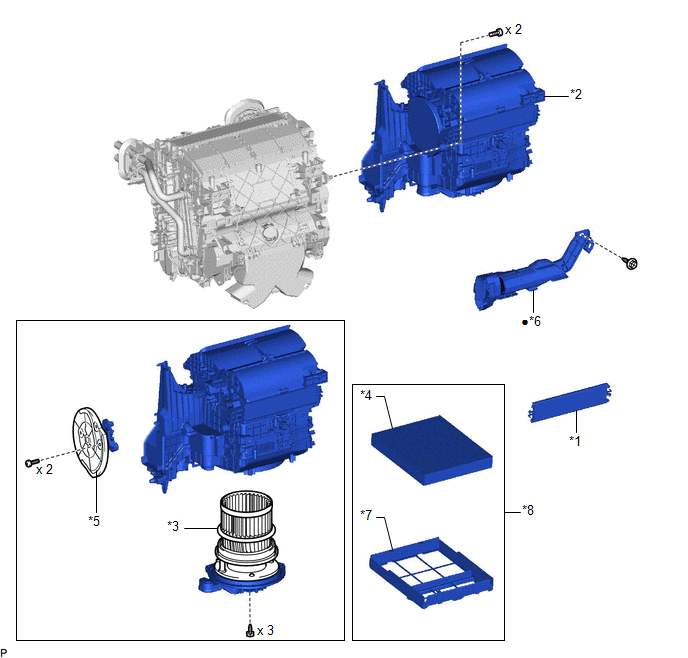

ILLUSTRATION
|
*1 | AIR FILTER COVER PLATE |
*2 | BLOWER ASSEMBLY |
|
*3 | BLOWER MOTOR WITH FAN SUB-ASSEMBLY |
*4 | CLEAN AIR FILTER |
|
*5 | NO. 1 BLOWER DAMPER SERVO SUB-ASSEMBLY |
*6 | NO. 2 AIR DUCT |
|
*7 | AIR FILTER CASE |
*8 | AIR FILTER SUB-ASSEMBLY |
|
? | Non-reusable part |
- | - |
