Toyota Camry (XV70): Components
COMPONENTS
ILLUSTRATION
|

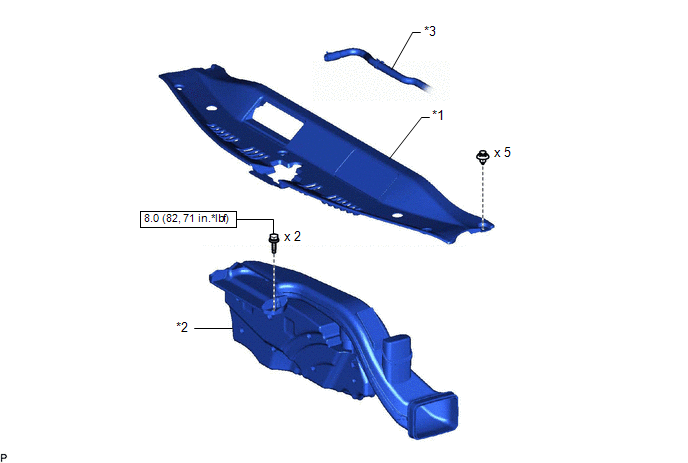

*1 | COOL AIR INTAKE DUCT SEAL |
*2 | INLET AIR CLEANER ASSEMBLY |
|
*3 | NO. 5 WATER BY-PASS HOSE |
- | - |
.png) |
N*m (kgf*cm, ft.*lbf): Specified torque |
- | - |
ILLUSTRATION
|
*A | for Type A |
*B | for Type B |
|

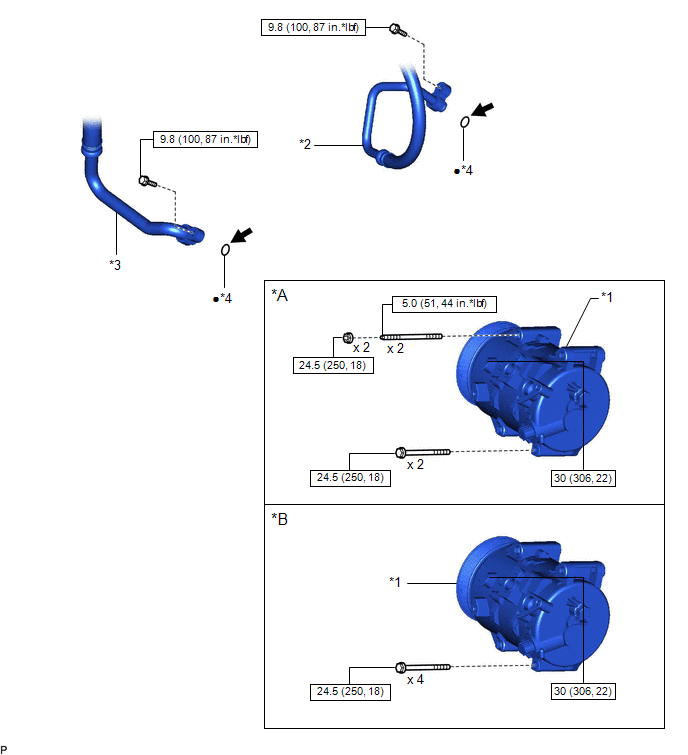

*1 | COMPRESSOR ASSEMBLY WITH PULLEY |
*2 | NO. 1 COOLER REFRIGERANT DISCHARGE HOSE SUB-ASSEMBLY |
|
*3 | SUCTION HOSE SUB-ASSEMBLY |
*4 | O-RING |
|
|
N*m (kgf*cm, ft.*lbf): Specified torque |
? | Non-reusable part |
.png) |
Compressor oil ND-OIL 12 or equivalent |
- | - |
