Toyota Camry (XV70): Components
COMPONENTS

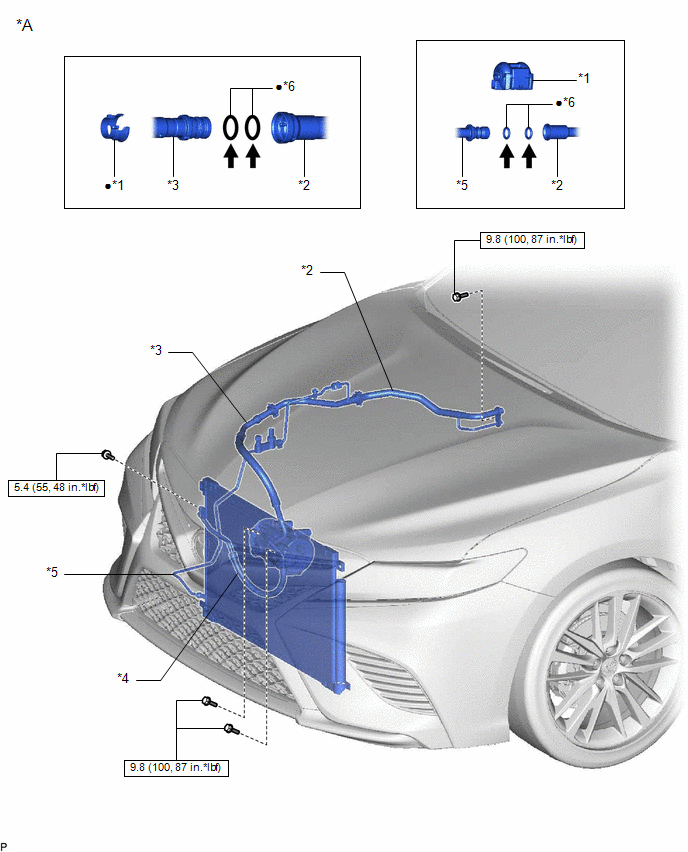

ILLUSTRATION
|
*A | for A25A-FKS |
- | - |
|
*1 | PIPING CLAMP |
*2 | SUCTION PIPE SUB-ASSEMBLY |
|
*3 | SUCTION HOSE SUB-ASSEMBLY |
*4 | NO. 1 COOLER REFRIGERANT DISCHARGE HOSE SUB-ASSEMBLY |
|
*5 | AIR CONDITIONING TUBE AND ACCESSORY ASSEMBLY |
*6 | O-RING |
.png) |
N*m (kgf*cm, ft.*lbf): Specified torque |
? | Non-reusable part |
.png) |
Compressor oil ND-OIL 12 or equivalent |
- | - |

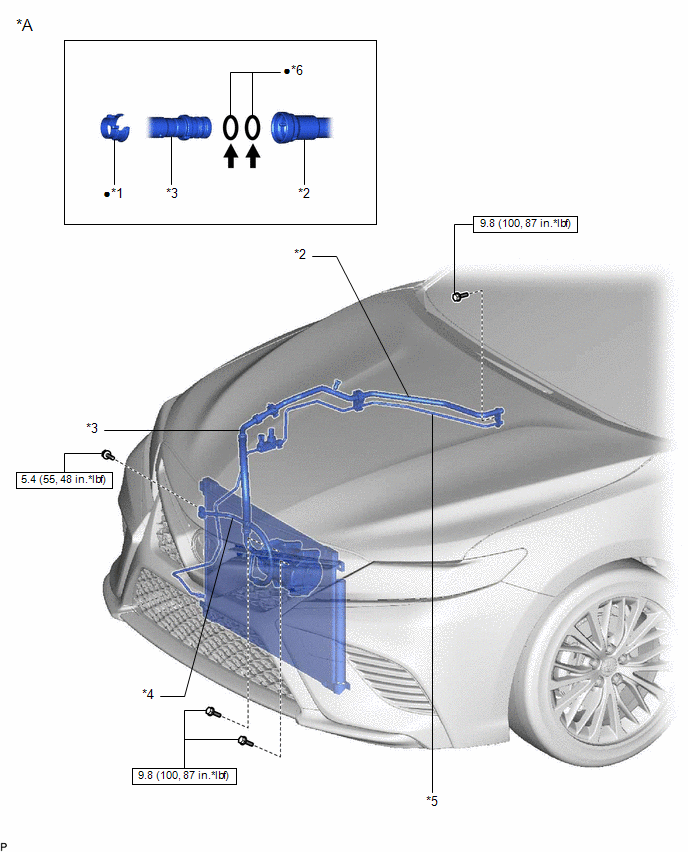

ILLUSTRATION
|
*A | for 2GR-FKS |
- | - |
|
*1 | PIPING CLAMP |
*2 | NO. 2 AIR CONDITIONING TUBE AND ACCESSORY ASSEMBLY |
|
*3 | SUCTION HOSE SUB-ASSEMBLY |
*4 | NO. 1 COOLER REFRIGERANT DISCHARGE HOSE SUB-ASSEMBLY |
|
*5 | AIR CONDITIONING TUBE AND ACCESSORY ASSEMBLY |
*6 | O-RING |
|
|
N*m (kgf*cm, ft.*lbf): Specified torque |
? | Non-reusable part |
|
|
Compressor oil ND-OIL 12 or equivalent |
- | - |

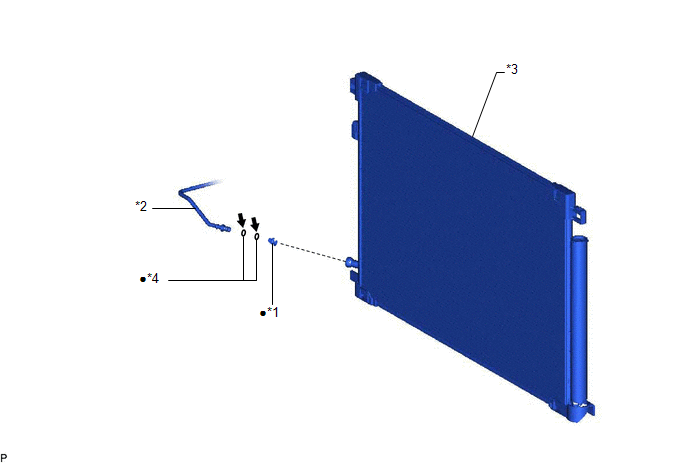

ILLUSTRATION
|
*1 | PIPING CLAMP |
*2 | AIR CONDITIONING TUBE AND ACCESSORY ASSEMBLY |
|
*3 | COOLER CONDENSER ASSEMBLY |
*4 | O-RING |
|
|
Compressor oil ND-OIL 12 or equivalent |
? | Non-reusable part |
