Toyota Camry Repair Manual XV70 (2018-2024) / Vehicle Interior / Lighting (int) / Rear Door Courtesy Switch / Components

COMPONENTS

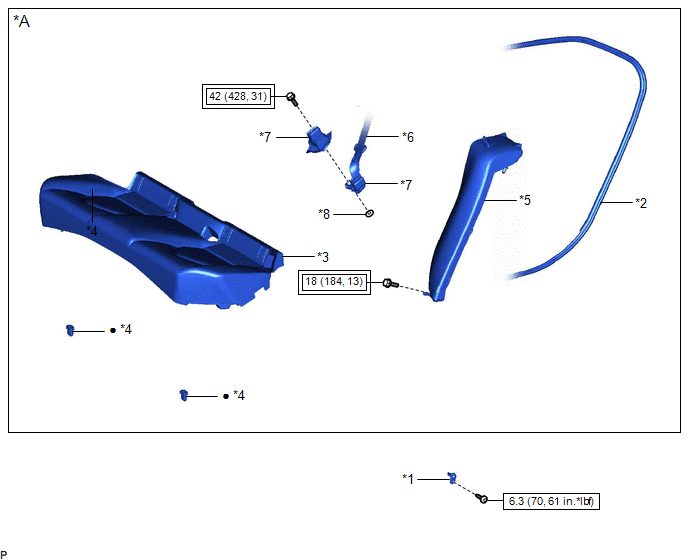

ILLUSTRATION

*A

for Fold Down Seat Type

-

-

*1

REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY

*2

REAR DOOR OPENING TRIM WEATHERSTRIP

*3

REAR SEAT CUSHION ASSEMBLY

*4

REAR SEAT CUSHION LOCK HOOK

*5

REAR SIDE SEATBACK ASSEMBLY

*6

REAR CENTER SEAT OUTER BELT ASSEMBLY

*7

REAR SEAT INNER BELT ASSEMBLY RH

*8

WASHER

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

?

Non-reusable part

-

-
