DIAGNOSIS SYSTEM
CHECK DLC3
(a) Check the DLC3.
Click here .gif)
CHECK WARNING LIGHT

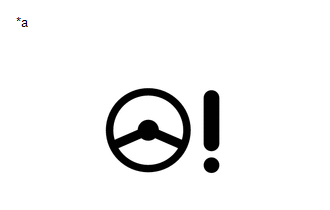

(a) When a problem occurs in the power steering system, the EPS warning light in the combination meter assembly comes on to inform the driver of the problem.
|
*a | EPS Warning Light |
