Toyota Camry (XV70): Disassembly
DISASSEMBLY
PROCEDURE
1. REMOVE CLUTCH DRUM OIL SEAL RING
| (a) Remove the 4 clutch drum oil seal rings from the stator shaft assembly. |
|
2. REMOVE OIL STRAINER ASSEMBLY
| (a) Using a T30 "TORX" socket wrench, remove the 2 bolts and oil strainer assembly from the front oil pump cover sub-assembly. |
|
3. REMOVE STATOR SHAFT ASSEMBLY
| (a) Remove the 5 bolts and stator shaft assembly from the front oil pump body. |
|
4. REMOVE FRONT OIL PUMP DRIVE GEAR
| (a) Remove the front oil pump drive gear from the front oil pump body. |
|
5. REMOVE FRONT OIL PUMP DRIVEN GEAR
| (a) Remove the front oil pump driven gear from the front oil pump body. |
|

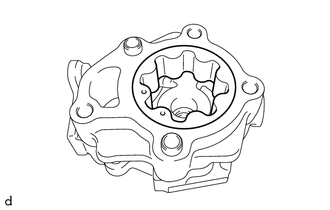

6. REMOVE FRONT OIL PUMP BODY
| (a) Remove the front oil pump body from the front oil pump cover sub-assembly. |
|
7. REMOVE RING PIN
| (a) Remove the 2 ring pins from the front oil pump cover sub-assembly. |
|
