Toyota Camry (XV70): Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are replaced during forward recognition camera removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced

Replacement Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

Forward recognition camera

Adjust forward recognition camera

  • Dynamic Radar Cruise Control System
  • Front Camera System
  • Lane Tracing Assist System
  • Road Sign Assist System
  • Pre-collision System
  • Lighting System (EXT)

Target Adjustment (One Time Recognition):

or

Target Adjustment (Sequential Recognition):

or

Driving Adjustment:

NOTICE:

  • When replacing the forward recognition camera, replace it with a new one.
  • Do not touch the camera lens or the front windshield glass in front of the camera.
  • If the forward recognition camera has been struck or dropped, replace it with a new one.
  • When replacing the windshield glass of a vehicle equipped with a forward recognition camera, make sure to use a Toyota genuine part. If a non-Toyota genuine part is used, the forward recognition camera may not be able to be installed due to a missing bracket. Also, the dynamic radar cruise control system, front camera system, lane tracing assist system, road sign assist system, pre-collision system or lighting system (EXT) may not operate properly due to a difference in the transmissivity or black ceramic border.

PROCEDURE

1. REMOVE NO. 2 FORWARD RECOGNITION COVER

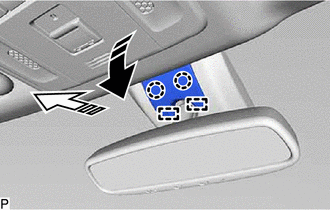

(a) Pull the No. 2 forward recognition cover in the direction indicated by the arrow (1) shown in the illustration to disengage the 2 claws.

NOTICE:

If these claws are disengaged separately, they may break. Insert a molding remover between them and pull it down to disengage the claws simultaneously.

Remove in this Direction (1)

Remove in this Direction (2)

(b) Pull the No. 2 forward recognition cover in the direction indicated by the arrow (2) shown in the illustration to disengage the 2 guides and remove the No. 2 forward recognition cover.

2. REMOVE NO. 1 FORWARD RECOGNITION COVER

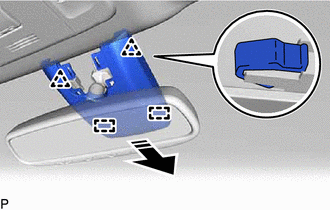

(a) Disengage the 2 clips and 2 guides to remove the No. 1 forward recognition cover as shown in the illustration.

NOTICE:

To avoid damaging the guides, always slide the No. 1 forward recognition cover parallel to the windshield glass.

Remove in this Direction

3. REMOVE FORWARD RECOGNITION LATCH

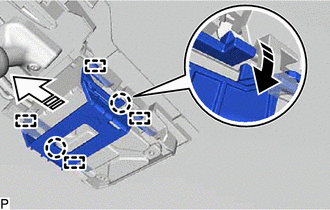

(a) Disengage the 2 claws in the direction indicated by the arrow (1) shown in the illustration.

Remove in this Direction (1)

Remove in this Direction (2)

(b) Disengage the 4 guides in the direction indicated by the arrow (2) shown in the illustration to remove the forward recognition latch.

4. REMOVE FORWARD RECOGNITION CAMERA

NOTICE:

If the forward recognition camera has been struck or dropped, replace it with a new one.

(a) Disconnect the connector.

Remove in this Direction

NOTICE:

Do not pull the harness forcibly when disconnecting the connector.

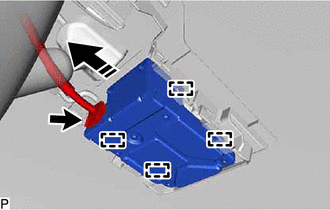

(b) Disengage the 4 guides and remove the forward recognition camera as shown in the illustration.

NOTICE:

  • Do not touch the camera lens.
  • If the forward recognition camera bracket is deformed or damaged, replace it together with the windshield glass.
