Toyota Camry (XV70): Front Blower Motor

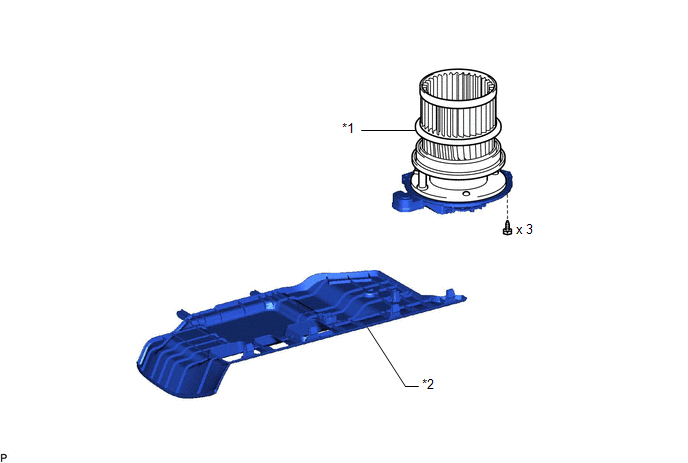

Components
COMPONENTS
ILLUSTRATION
|
*1 | BLOWER MOTOR WITH FAN SUB-ASSEMBLY |
*2 | NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
Removal
REMOVAL
PROCEDURE
1. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Click here
.gif)

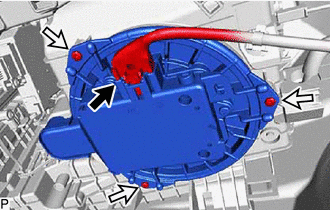

2. REMOVE BLOWER MOTOR WITH FAN SUB-ASSEMBLY
| (a) Disconnect the connector. |
|
(b) Remove the 3 screws and blower motor with fan sub-assembly.
NOTICE:
Replace the blower motor with fan sub-assembly if it has been dropped or subjected to a severe impact.
Installation
INSTALLATION
PROCEDURE
1. INSTALL BLOWER MOTOR WITH FAN SUB-ASSEMBLY
(a) Install the blower motor with fan sub-assembly with the 3 screws.
NOTICE:
Replace the blower motor with fan sub-assembly if it has been dropped or subjected to a severe impact.
(b) Connect the connector.
2. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Click here .gif)
