Toyota Camry (XV70): Components
COMPONENTS

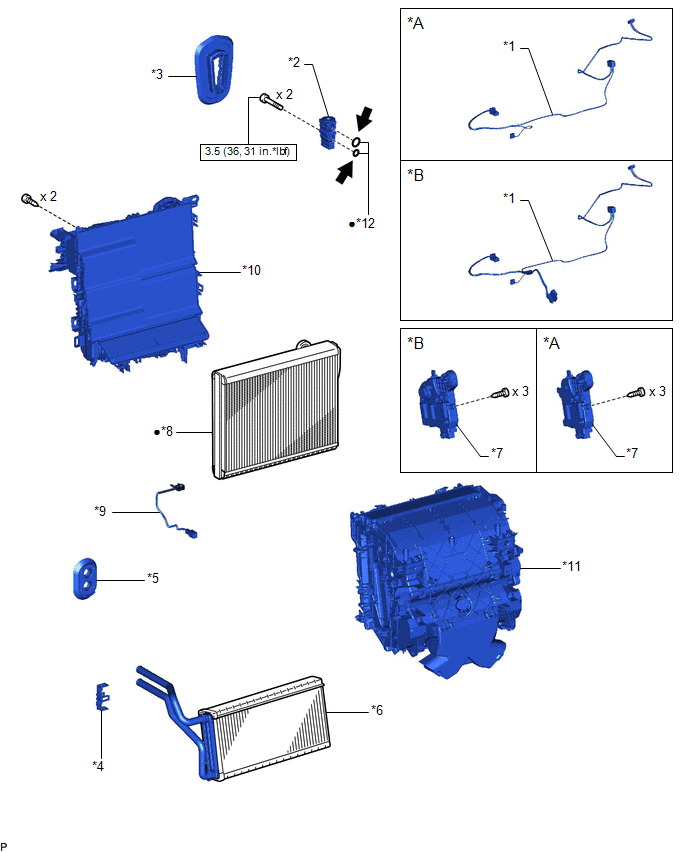

ILLUSTRATION
|
*A | for Single Type |
*B | for Dual Type |
|
*1 | AIR CONDITIONING HARNESS ASSEMBLY |
*2 | COOLER EXPANSION VALVE |
|
*3 | GROMMET SUB-ASSEMBLY |
*4 | HEATER CLAMP |
|
*5 | HEATER PIPE GROMMET |
*6 | HEATER RADIATOR UNIT SUB-ASSEMBLY |
|
*7 | NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY |
*8 | NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY |
|
*9 | NO. 1 COOLER THERMISTOR |
*10 | UPPER HEATER CASE |
|
*11 | LOWER HEATER CASE |
*12 | O-RING |
.png) |
N*m (kgf*cm, ft.*lbf): Specified torque |
? | Non-reusable part |
.png) |
Compressor oil ND-OIL 12 or equivalent |
- | - |
