Toyota Camry (XV70): Front Wiper Rubber
Toyota Camry Repair Manual XV70 (2018-2024) / Vehicle Exterior / Wiper / Washer / Front Wiper Rubber
Components
COMPONENTS

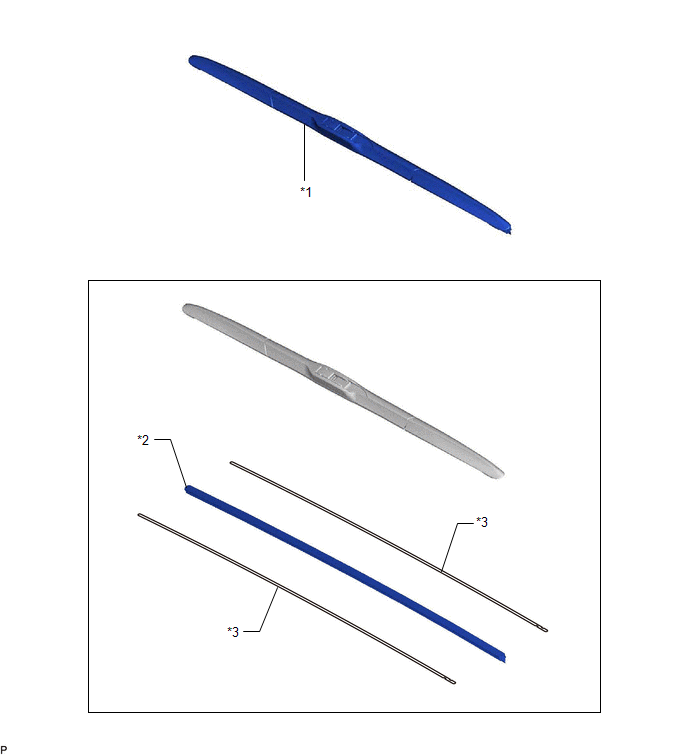

ILLUSTRATION
|
*1 | FRONT WIPER BLADE |
*2 | WIPER RUBBER |
|
*3 | FRONT WIPER RUBBER BACKING PLATE |
- | - |
Replacement
REPLACEMENT
CAUTION / NOTICE / HINT
NOTICE:
Make sure to hold the front wiper arm while lifting it as lifting the front wiper arm by the front wiper blade may damage or deform the front wiper blade.
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. REMOVE FRONT WIPER BLADE
Click here .gif)
2. REMOVE WIPER RUBBER
Click here
3. INSTALL WIPER RUBBER
Click here
4. INSTALL FRONT WIPER BLADE
Click here
