Toyota Camry (XV70): Ignition Key Cylinder Light
Components
COMPONENTS

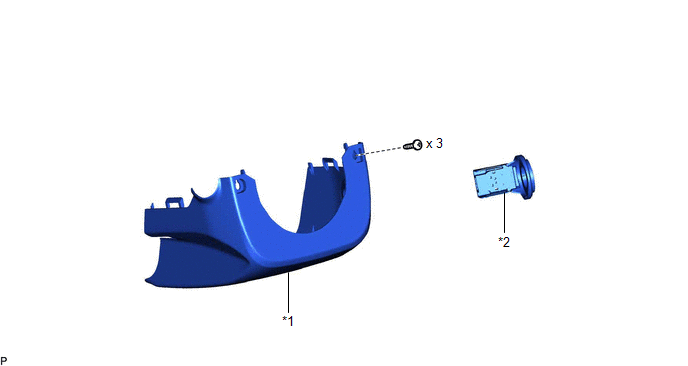

ILLUSTRATION
|
*1 | LOWER STEERING COLUMN COVER SUB-ASSEMBLY |
*2 | TRANSPONDER KEY COIL |
Removal
REMOVAL
PROCEDURE
1. REMOVE LOWER STEERING COLUMN COVER SUB-ASSEMBLY
Click here
.gif)
2. REMOVE TRANSPONDER KEY COIL
Click here
Inspection
INSPECTION
PROCEDURE
1. INSPECT IGNITION KEY CYLINDER LIGHT (TRANSPONDER KEY COIL)
|

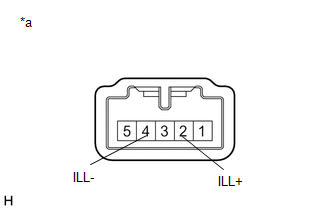

*a | Component without harness connected (Ignition Key Cylinder Light (Transponder Key Coil)) |
(a) Apply battery voltage to the connector and check that the ignition key cylinder light comes on.
OK:
|
Measurement Condition | Condition |
Specified Condition |
|---|---|---|
|
Battery positive (+) > 2 (ILL+) Battery negative (-) > 4 (ILL-) |
Always | Ignition key cylinder light comes on |
If the result is not as specified, replace the ignition key cylinder light (transponder key coil).
Installation
INSTALLATION
PROCEDURE
1. INSTALL TRANSPONDER KEY COIL
Click here
.gif)
2. INSTALL LOWER STEERING COLUMN COVER SUB-ASSEMBLY
Click here
