Toyota Camry (XV70): Removal
REMOVAL
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH
Click here .gif)
2. REMOVE FRONT DOOR ARMREST COVER SUB-ASSEMBLY
Click here
3. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)
Click here
4. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)
Click here
5. REMOVE FRONT ARMREST ASSEMBLY
Click here
6. REMOVE FRONT DOOR TRIM PLATE (w/o Courtesy Light)
Click here
7. REMOVE COURTESY LIGHT ASSEMBLY (w/ Courtesy Light)
Click here
8. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY
Click here
9. REMOVE NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY

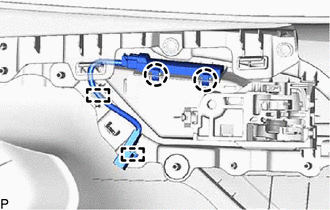

| (a) Disengage the 2 clamps. |
|
(b) Disengage the 2 claws to remove the No. 1 interior illumination light assembly.
