Toyota Camry (XV70): Inspection
INSPECTION
PROCEDURE
1. INSPECT NO. 1 VACUUM SWITCHING VALVE ASSEMBLY (for ACIS)

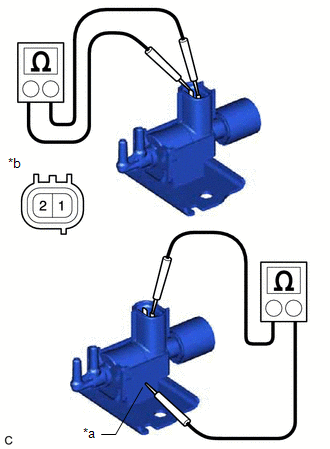

| (a) Measure the resistance according to the value(s) in the table below.
Standard Resistance: |
Tester Connection | Condition |
Specified Condition | |
1 - 2 | 20°C (68°F) |
33 to 39 Ω | |
1 - No. 1 vacuum switching valve assembly (for ACIS) body ground |
Always |
10 kΩ or higher | |
2 - No. 1 vacuum switching valve assembly (for ACIS) body ground |
If the result is not as specified, replace the No. 1 vacuum switching valve assembly (for ACIS). |
|
|
*a | Valve Body | |
*b | Component without harness connected
(No. 1 Vacuum Switching Valve Assembly (for ACIS)) | | |
(b) Check the No. 1 vacuum switching valve assembly (for ACIS) operation.

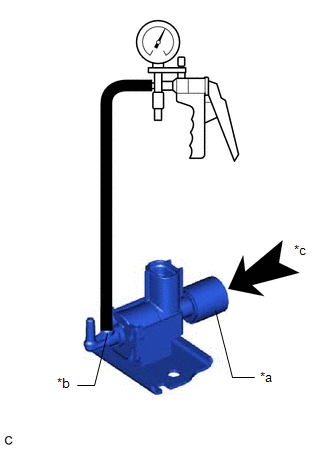

| (1) When vacuum is applied to the port (E), check that air is sucked into the filter.
If the result is not as specified, replace the No. 1 vacuum switching valve assembly (for ACIS). |
|
|
*a | Filter | |
*b | Port (E) | |
*c | Air | | |

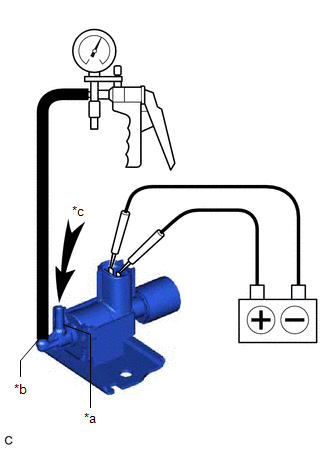

| (2) Apply battery voltage across the terminals. When vacuum is applied to the port (F), check that air is sucked into the port (E).
If the result is not as specified, replace the No. 1 vacuum switching valve assembly (for ACIS). |
|
|
*a | Port (E) | |
*b | Port (F) | |
*c | Air | | |
