INSPECTION

PROCEDURE

1. INSPECT GENERATOR BRUSH HOLDER ASSEMBLY

(a) Using a vernier caliper, measure the length of the exposed brushes.

Standard Exposed Brush Length:

9.5 to 11.5 mm (0.374 to 0.453 in.)

Minimum Exposed Brush Length:

4.5 mm (0.177 in.)

If the brush length is less than the minimum, replace the generator brush holder assembly.

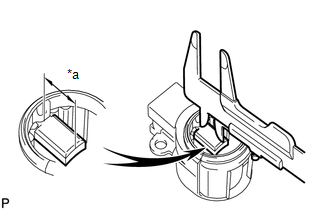

*a

Length

2. INSPECT GENERATOR ROTOR ASSEMBLY

(a) Check the generator rotor assembly for an open circuit.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

Slip ring - Slip ring

20
