INSPECTION
PROCEDURE
1. INSPECT FUEL LID LOCK WITH MOTOR ASSEMBLY
(a) Check the operation of the fuel lid lock with motor assembly (motor operation).
(1) Apply battery voltage to the fuel lid lock with motor assembly connector, and check the operation of the fuel lid lock with motor assembly.
|

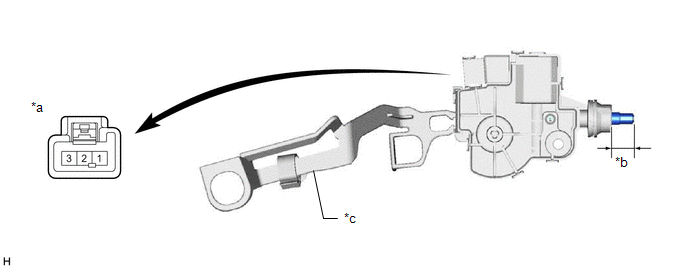

*a | Component without harness connected (Fuel Lid Lock with Motor Assembly) |
*b | Shaft Stroke |
|
*c | Lever |
- | - |
OK:
|
Battery Connection | Specified Condition |
|---|---|
|
Battery positive (+) → Terminal 1 Battery negative (-) → Terminal 2 |
Shaft not extended |
If the result is not as specified, replace the fuel lid lock with motor assembly.
(b) Measure the shaft stroke.
Standard:
|
Area | Condition |
Specified Condition |
|---|---|---|
|
Shaft stroke | Lever pulled |
16.05 mm (0.632 in.) |
If the result is not as specified, replace the fuel lid lock with motor assembly.
