Toyota Camry (XV70): Installation
INSTALLATION
PROCEDURE
1. INSTALL FUEL LID LOCK WITH MOTOR ASSEMBLY
(a) Apply MP grease to the sliding parts of the fuel lid lock with motor assembly.
(b) Connect the connector.
(c) Engage the claw to install the fuel lid lock with motor assembly.
(d) Engage the clamp.
2. INSTALL FUEL FILLER OPENING LID LOCK RETAINER

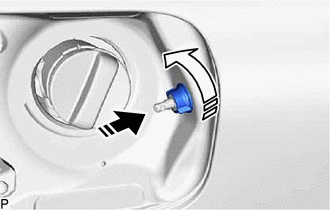

(a) Install the fuel filler opening lid lock retainer as indicated by the arrows, the order shown in the illustration.
.png) |
Install in this Direction (1) |
.png) |
Turn in this Direction (2) |
3. INSTALL LUGGAGE COMPARTMENT TRIM INNER COVER LH
Click here .gif)
4. INSTALL REAR FLOOR FINISH PLATE
Click here
5. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
Click here
6. INSTALL SPARE WHEEL COVER TRAY
Click here
7. INSTALL SPARE WHEEL COVER ASSEMBLY
Click here
