Toyota Camry (XV70): Installation
INSTALLATION
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. INSTALL FRONT NO. 1 SPEAKER ASSEMBLY
NOTICE:
Do not touch the speaker cone.
(a) Connect the connector.
(b) Engage the 2 guides to temporarily install the front No. 1 speaker assembly.

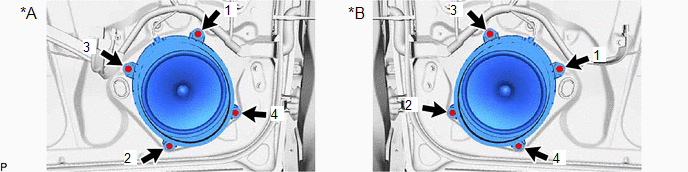

(c) Install the front No. 1 speaker assembly with the 4 screws.
|
*A | for LH Side |
*B | for RH Side |
HINT:
Install the screws in the order shown in the illustration.
2. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY
Click here
.gif)
3. INSTALL FRONT DOOR TRIM PLATE (w/o Courtesy Light)
Click here
4. INSTALL COURTESY LIGHT ASSEMBLY (w/ Courtesy Light)
Click here
5. INSTALL FRONT ARMREST ASSEMBLY
Click here
6. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)
Click here
7. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)
Click here
8. INSTALL FRONT DOOR ARMREST COVER SUB-ASSEMBLY
Click here
9. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH
Click here
10. INSPECT POWER WINDOW OPERATION
Click here
