Toyota Camry (XV70): Installation

Toyota Camry Repair Manual XV70 (2018-2024) / Suspension / Rear Suspension / Rear Coil Spring / Installation

INSTALLATION

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL REAR UPPER COIL SPRING INSULATOR

(a) Install the rear upper coil spring insulator to the vehicle.

2. INSTALL REAR LOWER COIL SPRING INSULATOR

(a) Install the rear lower coil spring insulator to the rear No. 2 suspension arm assembly.

3. INSTALL REAR COIL SPRING

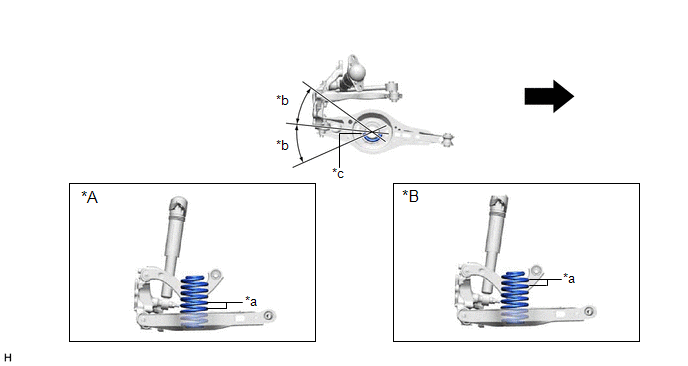

(a) Set the rear coil spring to the rear No. 2 suspension arm assembly.

*A

for 2WD

*B

for AWD

*a

Identification Mark

*b

30
