INSTALLATION

PROCEDURE

1. INSTALL REAR STABILIZER BUSHING

(a) Install the 2 rear stabilizer bushings to the rear stabilizer bar.

NOTICE:

Be sure to install the rear stabilizer bushings so that each cutout faces the front of the vehicle.

2. INSTALL REAR NO. 1 STABILIZER BAR BRACKET

(a) Install the 2 rear No. 1 stabilizer bar brackets to the 2 rear stabilizer bushings.

NOTICE:

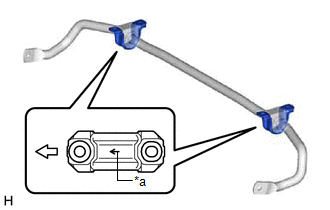

Be sure to install the rear No. 1 stabilizer bar brackets so that each arrow mark faces the front of the vehicle.

*a

Arrow Mark

Front of the Vehicle

3. INSTALL REAR STABILIZER BAR

(a) Install the rear stabilizer bar, 2 rear No. 1 stabilizer bar brackets and 2 rear stabilizer bushings to the rear suspension member sub-assembly with the 4 bolts.

Torque:

78 N
