Toyota Camry Repair Manual XV70 (2018-2024) / Vehicle Exterior / Door / Hatch / Luggage Compartment Door Opener Inner Switch / Installation

INSTALLATION

PROCEDURE

1. INSTALL LUGGAGE COMPARTMENT DOOR OPENING SWITCH ASSEMBLY

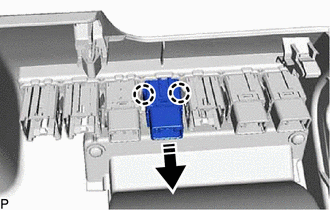

(a) Engage the 2 claws to install the luggage compartment door opening switch assembly as shown in the illustration.

Install in this Direction

2. INSTALL NO. 1 INSTRUMENT PANEL SUB-ASSEMBLY

Click here

3. CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

Click here

4. INSTALL NO. 2 METER HOOD CLUSTER

Click here

5. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click here

6. INSTALL INSTRUMENT SIDE PANEL LH

Click here

7. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

Click here

8. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH

Click here

9. INSTALL FRONT DOOR SCUFF PLATE LH

Click here
