Toyota Camry (XV70): Installation
INSTALLATION
PROCEDURE
1. INSTALL STEERING WHEEL SWITCH HOUSING
(a) When reusing the steering wheel switch housing:

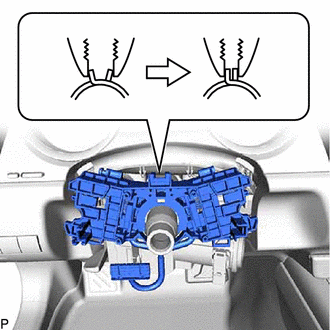

| (1) Using pliers, expand the clamp and temporarily install the steering wheel switch housing as shown in the illustration. |
|
.png)

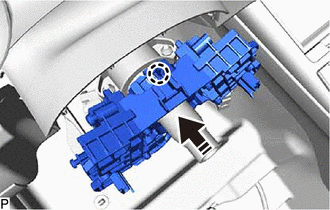

(2) While holding the clamp expanded, engage the claw as shown in the illustration.
.png) |
Install in this Direction |

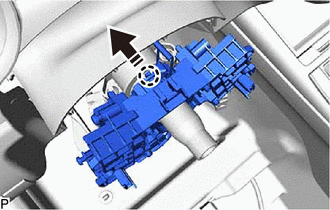

| (3) Release the clamp to install the steering wheel switch housing as shown in the illustration. |
|
(b) When installing a new steering wheel switch housing:

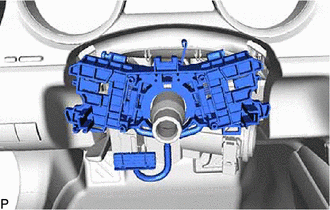

| (1) Temporarily install the steering wheel switch housing. |
|
(2) Engage the claw as shown in the illustration.
|
|
Install in this Direction |

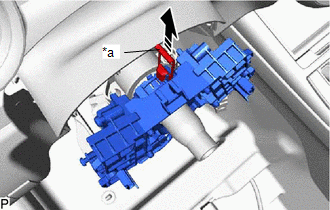

(3) Remove the pin to install the steering wheel switch housing as shown in the illustration.
|
*a | Pin |
|
|
Remove in this Direction |
2. INSTALL TURN SIGNAL SWITCH
Click here .gif)
3. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY
Click here
4. INSTALL SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
Click here
