Toyota Camry (XV70): Installation

INSTALLATION

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL OUTER MIRROR (for Type A)

(a) w/o Blind Spot Monitor System:

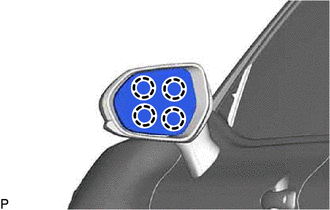

(1) Engage the 4 claws to install the outer mirror.

NOTICE:

Do not push the outer mirror with excessive force. Doing so may break the mirror surface.

(b) w/ Blind Spot Monitor System:

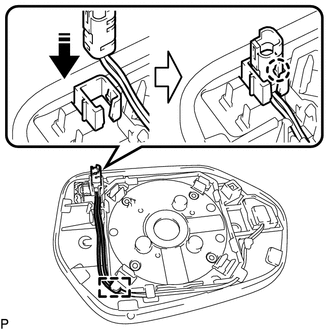

(1) Engage the clamp.

Install in this Direction

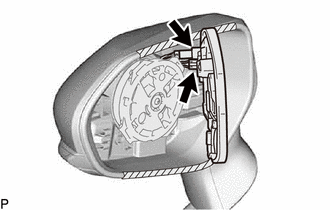

(2) Engage the claw as shown in the illustration.

(3) Connect the 2 connectors.

(4) Engage the 4 claws to install the outer mirror.

NOTICE:

Do not push the outer mirror with excessive force. Doing so may break the mirror surface.

2. INSTALL OUTER MIRROR (for Type B)

(a) Connect the 2 connectors.

(b) Engage the 4 claws to install the outer mirror.

NOTICE:

Do not push the outer mirror with excessive force. Doing so may break the mirror surface.
