DESCRIPTION
Refer to DTC C050012
Click here
DTC No. | Detection Item |
DTC Detection Condition | Trouble Area |
---|---|---|---|
C050014 | Left Front Wheel Speed Sensor Circuit Short to Ground or Open |
A short or open circuit is detected in the speed sensor signal circuit for 0.12 seconds or more. |
|
Vehicle Condition | |||
---|---|---|---|
Pattern 1 | Pattern 2 | ||
Diagnosis Condition | - |
- | - |
Malfunction Status | An open circuit is detected in the speed sensor signal circuit. |
○ | - |
A short circuit is detected in the speed sensor signal circuit. |
- | ○ | |
Detection Time | 0.12 seconds or more. |
0.12 seconds or more. | |
Number of Trips | 1 trip |
1 trip |
HINT:
DTC will be output when conditions for either of the patterns in the table above are met.
WIRING DIAGRAM
Refer to DTC C050012.
Click here
CAUTION / NOTICE / HINT
NOTICE:
Click here
Click here
PROCEDURE
1. | CHECK HARNESS AND CONNECTOR (SENSOR GROUND CIRCUIT) |
(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors. OK: The connector is securely connected. |
|

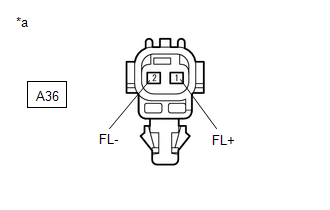

(b) Disconnect the A36 front speed sensor LH connector.
(c) Check both the connector case and the terminals for deformation and corrosion.
OK:
No deformation or corrosion.
(d) Turn the ignition switch to ON.
(e) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
Tester Connection | Condition |
Specified Condition |
---|---|---|
A36-1 (FL+) - A36-2 (FL-) |
Ignition switch ON | 11 to 14 V |
NG | GO TO STEP 3 |
|
2. |
CHECK HARNESS AND CONNECTOR (FRONT SPEED SENSOR LH - BRAKE ACTUATOR ASSEMBLY) |
(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.
OK:
The connector is securely connected.
(b) Disconnect the A34 skid control ECU (brake actuator assembly) connector.
(c) Disconnect the A36 front speed sensor LH connector.
(d) Check both the connector case and the terminals for deformation and corrosion.
OK:
No deformation or corrosion.
(e) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
Tester Connection | Condition |
Specified Condition |
---|---|---|
A36-2 (FL-) or A34-7 (FL-) - Body ground |
Always | 10 kΩ or higher |
OK | REPLACE FRONT SPEED SENSOR LH |
NG | REPAIR OR REPLACE HARNESS OR CONNECTOR |
3. |
CHECK HARNESS AND CONNECTOR (FRONT SPEED SENSOR LH - BRAKE ACTUATOR ASSEMBLY) |
(a) Make sure that there is no looseness at the locking part and the connecting part of the connectors.
OK:
The connector is securely connected.
(b) Disconnect the A34 skid control ECU (brake actuator assembly) connector.
(c) Disconnect the A36 front speed sensor LH connector.
(d) Check both the connector case and the terminals for deformation and corrosion.
OK:
No deformation or corrosion.
(e) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
Tester Connection | Condition |
Specified Condition |
---|---|---|
A36-2 (FL-) - A34-7 (FL-) |
Always | Below 1 Ω |
OK | REPLACE BRAKE ACTUATOR ASSEMBLY |
NG | REPAIR OR REPLACE HARNESS OR CONNECTOR |
