Toyota Camry (XV70): Luggage Compartment Room Light Bulb
Replacement
REPLACEMENT
PROCEDURE
1. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
Click here
.gif)
2. REMOVE LUGGAGE COMPARTMENT LIGHT BULB

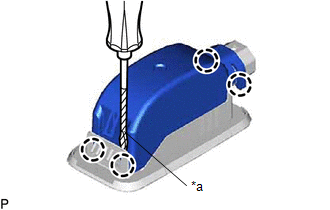

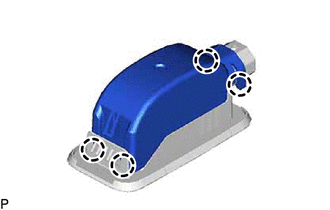

| (a) Using a screwdriver with its tip wrapped with protective tape, disengage the 4 claws to remove the shade from the No. 1 luggage compartment light lens. |
|
.png)

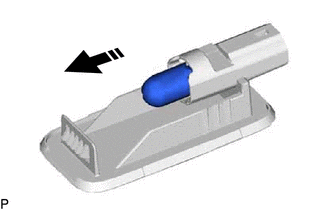

(b) Remove the luggage compartment light bulb from the No. 1 luggage compartment light lens as shown in the illustration.
.png)
.png) |
Remove in this Direction |
3. INSTALL LUGGAGE COMPARTMENT LIGHT BULB

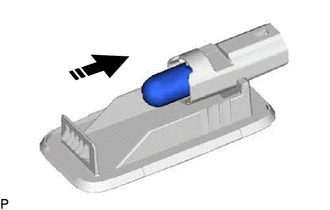

(a) Install the luggage compartment light bulb to the No. 1 luggage compartment light lens as shown in the illustration.
.png)
|
|
Install in this Direction |
| (b) Engage the 4 claws to install the shade to the No. 1 luggage compartment light lens. |
|
.png)
4. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
Click here
