Toyota Camry (XV70): On-vehicle Inspection
Toyota Camry Repair Manual XV70 (2018-2024) / Suspension / Front Suspension / Front Lower Ball Joint / On-vehicle Inspection
ON-VEHICLE INSPECTION
PROCEDURE
1. INSPECT FRONT LOWER BALL JOINT ASSEMBLY

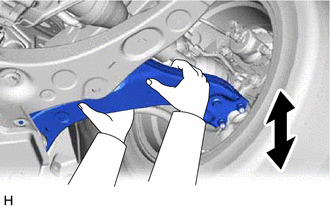

| (a) Check for looseness. (1) Lift up the vehicle. (2) Move the front lower No. 1 suspension arm sub-assembly up and down by hand with a force of 294 N (30 kgf) or more to check that there is no looseness at the front lower ball joint assembly. HINT: If the front lower ball joint assembly is loose, replace it with a new one. |
|
