Toyota Camry (XV70): Parts Location

PARTS LOCATION

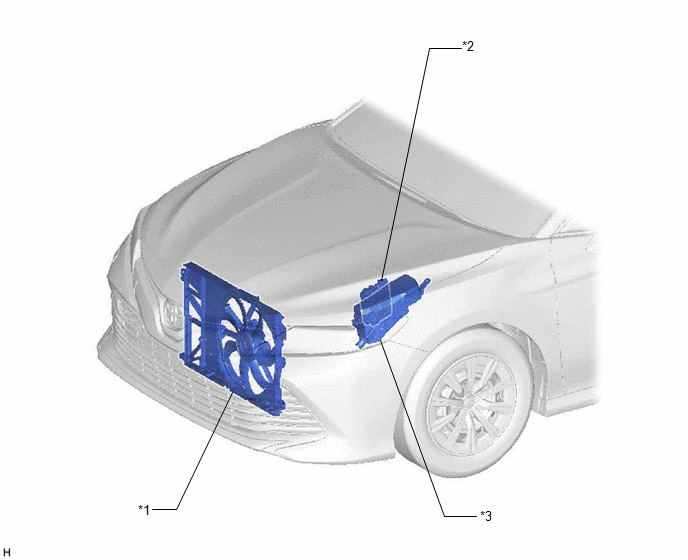

ILLUSTRATION

*1

FAN WITH MOTOR ASSEMBLY

- COOLING FAN MOTOR

- COOLING FAN ECU

*2

ECM

*3

ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY

- EFI-MAIN NO. 1 RELAY

-

-
