PARTS LOCATION

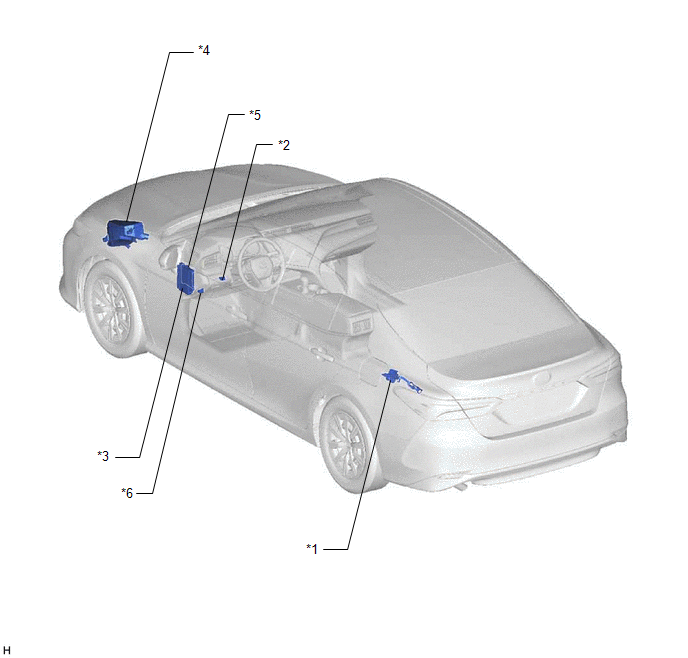

ILLUSTRATION
|
*1 | FUEL LID LOCK WITH MOTOR ASSEMBLY |
*2 | FUEL LID OPENER SWITCH |
|
*3 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - FUEL OPN RELAY |
*4 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - FUEL OPN FUSE |
|
*5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
*6 | DLC3 |
